Manufacturer Part Number
TS2PCIE412RUAR
Manufacturer
Texas Instruments
Introduction
The TS2PCIE412RUAR is a specialized interface analog switch designed for PCI Express® applications.
Product Features and Performance
Support for PCI Express® applications
8:16 Multiplexer/Demultiplexer Circuit
Single channel configuration
On-State Resistance of Max 18Ohm
Supports supply voltages from 1.5V to 2V
Surface Mount device
Packaged in a 42-WFQFN Exposed Pad
Optimized for high-speed signal switching
Product Advantages
Designed by Texas Instruments, a trusted name in semiconductor innovation
High-reliability and optimized for high-speed PCIe data transactions
Low on-state resistance to minimize signal distortion
Efficient power consumption at supported voltage levels
Key Technical Parameters
Number of Channels: 1
On-State Resistance (Max): 18Ohm
Voltage - Supply, Single (V+): 1.5V ~ 2V
Mounting Type: Surface Mount

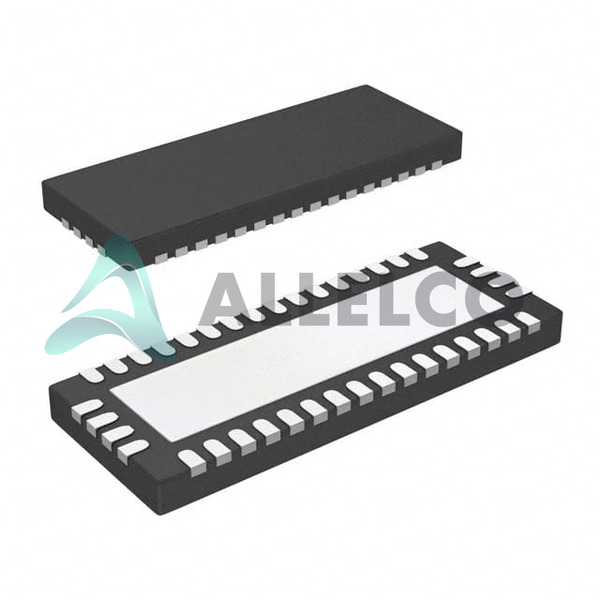

Package / Case: 42-WFQFN Exposed Pad
Supplier Device Package: 42-WQFN (3.5x9)
Base Product Number: TS2PCIE412
Quality and Safety Features
Active product status ensures ongoing manufacturer support
Compliance with Texas Instruments' standards for quality and safety
Compatibility
Designed for integration with PCI Express® systems
Surface mount technology for compatibility with modern PCB designs
Application Areas
Ideal for computers and peripherals requiring high-speed PCI Express® interfaces
Product Lifecycle
Active product series with manufacturer support
No indication of near discontinuation
Several Key Reasons to Choose This Product
Highly optimized for PCI Express® application needs
Texas Instruments' reputation for reliability and performance in interface switches
Low on-state resistance facilitates efficient signal switching
Active lifecycle status indicates ongoing support and availability
Supplied in tape and reel for easier manufacturing integration
