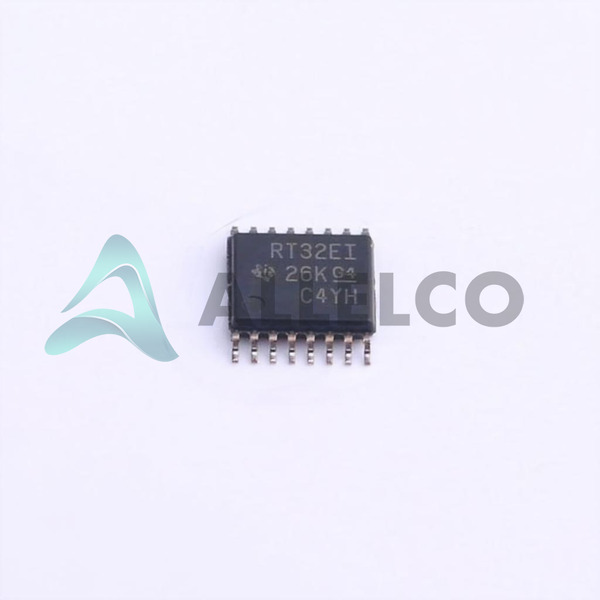

TRSF3232EIPWR - Texas Instruments

Manufacturer Part Number

TRSF3232EIPWR

Manufacturer

Texas Instruments

Introduction

High-Performance RS232 Line Driver/Receiver

Product Features and Performance

Dual Driver/Receiver Configuration

Full Duplex Communication Support

300 mV Receiver Hysteresis for Improved Noise Rejection

Up to 1Mbps Data Rate Capability

Wide Supply Voltage Range from 3V to 5.5V

Robust Operation from -40°C to 85°C

Surface Mount 16-TSSOP Package Ideal for Modern PCBs

Product Advantages

Designed for High-Speed Data Transmission

Enhanced ESD Protection

Low Power Consumption

Industry-Leading Signal Integrity

Key Technical Parameters

2 Drivers and 2 Receivers

RS232 Protocol Compliance

1Mbps Data Throughput

3V to 5.5V Supply Voltage

Full Duplex Capability

300 mV Receiver Hysteresis

Quality and Safety Features

Electrostatic Discharge (ESD) Protection Exceeding JESD 22

Compatibility

Compatible with RS232 Standards

Operational with Commonly Utilized Voltages in Digital Systems

Application Areas

Telecommunication Systems

Data Acquisition Systems

Point of Sale Terminals

Peripheral Device Interfaces

Product Lifecycle

Active Product Status

Not Nearing Discontinuation

Replacements and Upgrades Available for Longevity

Several Key Reasons to Choose This Product

Optimized for High-Speed Signal Processing

Durable Over a Wide Range of Operating Temperatures

Enhanced Protection Mechanisms for Long-Term Reliability

Versatile Application Range Due to Wide Voltage Compatibility

Ease of Integration in Industry-Standard Surface Mount Processes
