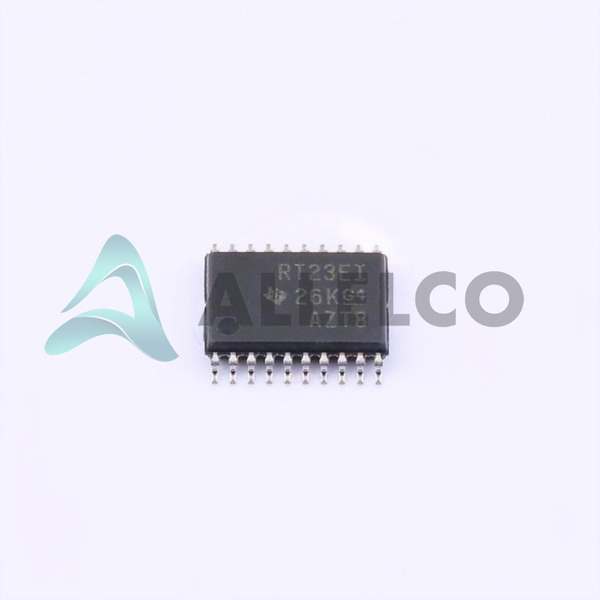

TRSF3223EIPWR - Texas Instruments

Manufacturer Part Number

TRSF3223EIPWR

Manufacturer

Texas Instruments

Introduction

High-speed RS232 Transceiver optimized for voltage flexibility and power efficiency.

Product Features and Performance

Enabled with 2 driver and 2 receiver channels

Supports full-duplex RS232 communication

Data rate of up to 1Mbps

Robust 500mV receiver hysteresis for noise suppression

Designed for operation from 3V to 5.5V supplies

Wide operating temperature range from -40°C to 85°C

Product Advantages

Voltage flexibility for use in varied logic level environments

Efficient power consumption suitable for battery-powered applications

High data rate suitable for modern communication needs

Excellent noise immunity due to built-in hysteresis

Industry-standard TSSOP packaging for easy integration

Key Technical Parameters

Number of Drivers/Receivers: 2/2

Duplex: Full

Receiver Hysteresis: 500 mV

Data Rate: 1Mbps

Voltage - Supply: 3V ~ 5.5V

Operating Temperature: -40°C ~ 85°C

Mounting Type: Surface Mount

Package/Case: 20-TSSOP

Quality and Safety Features

Built to Texas Instruments' high-quality standards

Thermal protection against overheating

ESD protection for enhanced reliability

Compatibility

Compatible with RS232 protocols

Mountable on a variety of PCBs via surface mount 20-TSSOP packaging

Application Areas

Data cable interfaces

Point-of-sale terminals

Modems

Telecommunication equipment

Product Lifecycle

Active product status

Not currently listed as nearing discontinuation

Potential future upgrades or replacements not explicitly detailed as of the knowledge cutoff date

Several Key Reasons to Choose This Product

High-speed data transmission capability increases communication efficiency

Lower power operation suitable for portable devices

Flexible voltage range that can accommodate different system designs

High reliability with built-in protection features

Texas Instruments' reputation for quality and support
