TPSM84A22MOJT - Texas Instruments

Manufacturer Part Number

TPSM84A22MOJT

Manufacturer

Texas Instruments

Introduction

Non-Isolated PoL (Point-of-Load) DC-DC Converter Module

Product Features and Performance

Output Voltage Range: 1.2V to 2.05V

Output Current: Up to 10A

Input Voltage Range: 8V to 14V

High Efficiency: 89%

Integrated Over-Current Protection (OCP) and Under-Voltage Lockout (UVLO)

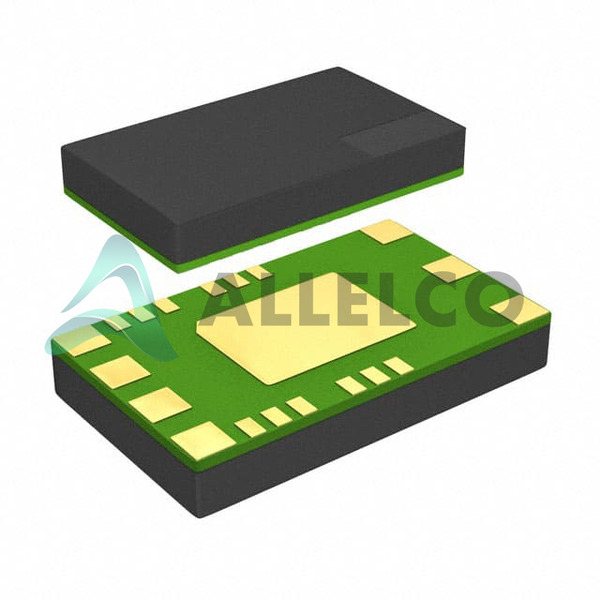

Surface Mount Package: 20-QFN Exposed Pad Module (9x15mm)

Operating Temperature Range: -40°C to 85°C

Product Advantages

High current capability up to 10A

Compact and space-saving surface mount package

Integrated protection features for reliability

Wide input voltage range support

Key Technical Parameters

Number of Outputs: 1

Voltage Output: 1.2V to 2.05V

Voltage Input (Min): 8V

Voltage Input (Max): 14V

Current Output (Max): 10A

Efficiency: 89%

Size / Dimension: 15.0mm x 9.0mm x 2.3mm

Quality and Safety Features

ROHS3 Compliant

Integrated Over-Current Protection (OCP) and Under-Voltage Lockout (UVLO)

Compatibility

Suitable for ITE (Commercial) applications

Application Areas

Power supplies for various electronic devices and systems

Product Lifecycle

This product is currently in active production and availability.

Replacement or upgrade options may be available from Texas Instruments.

Several Key Reasons to Choose This Product

High current capability up to 10A

Compact and space-saving surface mount package

Integrated protection features for reliability

Wide input voltage range support

Efficient power conversion with 89% efficiency

Suitable for a wide range of commercial applications
