HomeProductsPower Supplies - (Board Mount)DC DC ConvertersTPSM84209RKHT
Texas Instruments

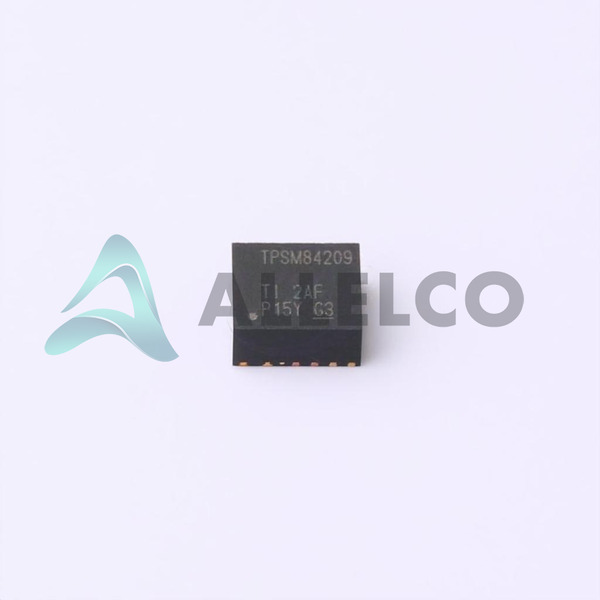

Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPSM84209RKHT - Texas Instruments

Manufacturer Part Number
TPSM84209RKHT
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPSM84209RKHT
ECAD Model
Parts Description
DC DC CONVERTER 1.2-6V 15W
Package
9-PowerQFN
Data sheet
TPSM84209 Datasheet.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 14212

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

TPSM84209RKHT Tech Specifications
Texas Instruments - TPSM84209RKHT technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPSM84209RKHT

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Output 4 -
Voltage - Output 3 -
Voltage - Output 2 -
Voltage - Output 1 1.2 ~ 6V
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 28V
Type Non-Isolated PoL Module
Supplier Device Package 9-QFN-FCMOD (4.5x4)
Size / Dimension 0.18" L x 0.16" W x 0.08" H (4.5mm x 4.0mm x 2.1mm)
Series TPSM
Package / Case 9-PowerQFN
Product Attribute Attribute Value
Package Tape & Reel (TR)
Operating Temperature -40°C ~ 85°C (With Derating)
Number of Outputs 1
Mounting Type Surface Mount
Features Adjustable Output, Remote On/Off
Efficiency 86.5%
Current - Output (Max) 2.5A
Control Features Enable, Active High
Base Product Number TPSM84209
Approval Agency -
Applications ITE (Commercial)

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TPSM84209RKHT

Manufacturer

Texas Instruments

Introduction

High-performance, non-isolated Point-of-Load (PoL) DC-DC converter module

Product Features and Performance

Adjustable output voltage from 1.2V to 6V

Maximum output current of 2.5A

Typical efficiency of 86.5%

Wide input voltage range of 4.5V to 28V

Operating temperature range of -40°C to +85°C with derating

Compact 9-pin PowerQFN package (4.5mm x 4mm x 2.1mm)

Product Advantages

Adjustable output voltage

High efficiency

Wide input voltage range

Small package size

Key Technical Parameters

Input voltage range: 4.5V to 28V

Output voltage range: 1.2V to 6V

Maximum output current: 2.5A

Efficiency: 86.5%

Operating temperature range: -40°C to +85°C

Quality and Safety Features

RoHS3 compliant

Compact 9-pin PowerQFN package

Compatibility

Suitable for a wide range of Information Technology Equipment (ITE) applications

Application Areas

Embedded systems

Industrial equipment

Consumer electronics

Product Lifecycle

Currently available

No information on discontinuation or replacement

Key Reasons to Choose This Product

Adjustable output voltage for flexible design

High efficiency for reduced power consumption

Wide input voltage range for versatile applications

Compact package size for space-constrained designs

Suitable for a variety of ITE applications

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPSM84209RKHT

Product Attribute TPSM84209RKHT TPSM84A21MOJR TPSM84A21MOJT TPSM84203EAB
Part Number TPSM84209RKHT TPSM84A21MOJR TPSM84A21MOJT TPSM84203EAB
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Type Non-Isolated PoL Module Non-Isolated PoL Module Non-Isolated PoL Module Linear Regulator Replacement
Operating Temperature -40°C ~ 85°C (With Derating) -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C (With Derating)
Voltage - Output 3 - - - -
Number of Outputs 1 1 1 1
Series TPSM SWIFT™ SWIFT™ TPSM
Voltage - Input (Min) 4.5V 8V 8V 4.5V
Size / Dimension 0.18" L x 0.16" W x 0.08" H (4.5mm x 4.0mm x 2.1mm) 0.59" L x 0.35" W x 0.09" H (15.0mm x 9.0mm x 2.3mm) 0.59" L x 0.35" W x 0.09" H (15.0mm x 9.0mm x 2.3mm) 0.40" L x 0.31" W x 0.44" H (10.1mm x 7.8mm x 11.1mm)
Package / Case 9-PowerQFN 20-QFN Exposed Pad Module 20-QFN Exposed Pad Module 3-SIP Module
Mounting Type Surface Mount Surface Mount Surface Mount Through Hole
Voltage - Output 2 - - - -
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tray
Features Adjustable Output, Remote On/Off OCP, UVLO OCP, UVLO OCP, OTP, OVP
Supplier Device Package 9-QFN-FCMOD (4.5x4) 20-QFM (9x15) 20-QFM (9x15) 3-SIP Module
Voltage - Output 1 1.2 ~ 6V 0.55 ~ 1.35V 0.55 ~ 1.35V 3.3V
Base Product Number TPSM84209 TPSM84 TPSM84 TPSM84203
Voltage - Input (Max) 28V 14V 14V 28V
Approval Agency - - - -
Applications ITE (Commercial) ITE (Commercial) ITE (Commercial) ITE (Commercial)
Current - Output (Max) 2.5A 10A 10A 1.5A
Control Features Enable, Active High - - -
Efficiency 86.5% 86.5% 86.5% 94%
Voltage - Output 4 - - - -

TPSM84209RKHT Datasheet PDF

Download TPSM84209RKHT pdf datasheets and Texas Instruments documentation for TPSM84209RKHT - Texas Instruments.

HTML Datasheet
TPSM84209 Datasheet.pdf
PCN Design/Specification
TPSM84209 15/Jun/2018.pdf
