HomeProductsPower Supplies - (Board Mount)DC DC ConvertersTPSM82480MOPR

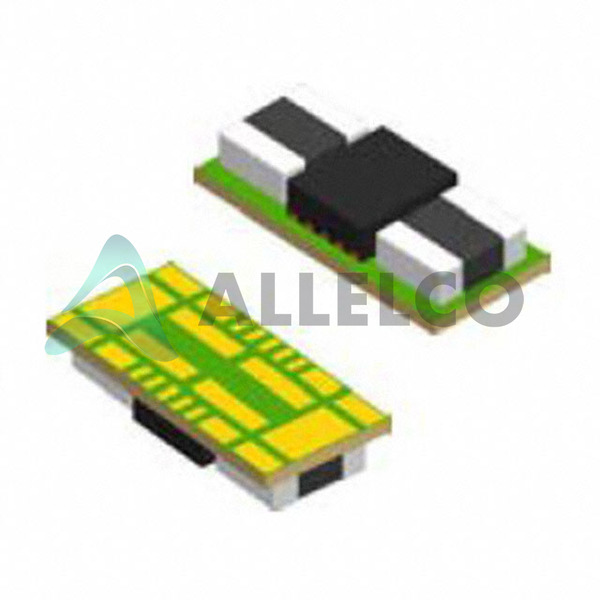

TPSM82480MOPR Image
TPSM82480MOPR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

TPSM82480MOPR - Texas Instruments

Manufacturer Part Number
TPSM82480MOPR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPSM82480MOPR
ECAD Model
Parts Description
DC DC CONVERTER 0.6-5.5V
Detailed Description
Package
24-SMD Module
Data sheet
TPSM82480 Datasheet.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 10739

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

TPSM82480MOPR Tech Specifications
Texas Instruments - TPSM82480MOPR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPSM82480MOPR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Output 4 -
Voltage - Output 3 -
Voltage - Output 2 -
Voltage - Output 1 0.6 ~ 5.5V
Voltage - Input (Min) 2.4V
Voltage - Input (Max) 5.5V
Type Non-Isolated PoL Module
Supplier Device Package 24-QFM (7.9x3.6)
Size / Dimension 0.31" L x 0.14" W x 0.06" H (7.9mm x 3.6mm x 1.6mm)
Series TPSM
Product Attribute Attribute Value
Package / Case 24-SMD Module
Package Tape & Reel (TR)
Operating Temperature -40°C ~ 125°C
Number of Outputs 1
Mounting Type Surface Mount
Features OCP, OTP, SCP, UVLO
Efficiency -
Current - Output (Max) 6A
Base Product Number TPSM82480
Applications ITE (Commercial)

Parts Introduction

Manufacturer Part Number

TPSM82480MOPR

Manufacturer

Texas Instruments

Introduction

Non-isolated Point-of-Load (PoL) DC/DC Converter Module

Product Features and Performance

Compact 24-QFM (7.9x3.6) package size

Output voltage range: 0.6V to 5.5V

Maximum output current: 6A

Input voltage range: 2.4V to 5.5V

High efficiency up to 94%

Fast transient response

Integrated protection features: OCP, OTP, SCP, UVLO

Product Advantages

Small size and high power density

Wide input and output voltage ranges

Overcurrent, overtemperature, and undervoltage lockout protection

Suitable for space-constrained applications

Key Technical Parameters

Voltage Input Range: 2.4V to 5.5V

Voltage Output Range: 0.6V to 5.5V

Maximum Output Current: 6A

Efficiency: Up to 94%

Operating Temperature: -40°C to 125°C

Quality and Safety Features

ROHS3 compliant

Integrated protection features: OCP, OTP, SCP, UVLO

Compatibility

Suitable for ITE (Commercial) applications

Application Areas

Embedded systems

Industrial equipment

Telecommunications equipment

Networking devices

Product Lifecycle

This product is currently in active production and not nearing discontinuation.

Replacement or upgraded models may become available in the future.

Key Reasons to Choose This Product

Compact size and high power density

Wide input and output voltage ranges

Excellent thermal and electrical performance

Integrated protection features for reliability

Suitable for space-constrained and high-power density applications

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPSM82480MOPR

Product Attribute TPSM82480MOPR TPSM63606SRDLR TPSM82813SILR TPSM828214SILR
Part Number TPSM82480MOPR TPSM63606SRDLR TPSM82813SILR TPSM828214SILR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Features OCP, OTP, SCP, UVLO Adjustable Output, Remote On/Off, Remote Sense Adjustable Output Remote On/Off
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Package / Case 24-SMD Module 20-PowerBFQFN Module 14-DFN Module 10-TFDFN Module
Voltage - Input (Min) 2.4V 3V 2.75V 2.4V
Type Non-Isolated PoL Module Non-Isolated PoL Module Non-Isolated PoL Module Non-Isolated PoL Module
Applications ITE (Commercial) ITE (Commercial) ITE (Commercial) ITE (Commercial)
Efficiency - 95.6% - 95%
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Size / Dimension 0.31" L x 0.14" W x 0.06" H (7.9mm x 3.6mm x 1.6mm) 0.22" L x 0.20" W x 0.16" H (5.5mm x 5.0mm x 4.1mm) 0.16" L x 0.12" W x 0.09" H (4.0mm x 3.0mm x 2.4mm) 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.1mm)
Voltage - Input (Max) 5.5V 36V 6V 5.5V
Voltage - Output 3 - - - -
Number of Outputs 1 1 1 1
Voltage - Output 1 0.6 ~ 5.5V 1 ~ 16V 0.6 ~ 5.5V 3.3V
Supplier Device Package 24-QFM (7.9x3.6) 20-B3QFN (5x5.5) 14-uSIP (4x3) 10-uSIP (2.5x2)
Voltage - Output 4 - - - -
Current - Output (Max) 6A 6A 3A 1A
Series TPSM TPSM - MicroSiP™
Voltage - Output 2 - - - -
Base Product Number TPSM82480 - TPSM82813 -

TPSM82480MOPR Datasheet PDF
