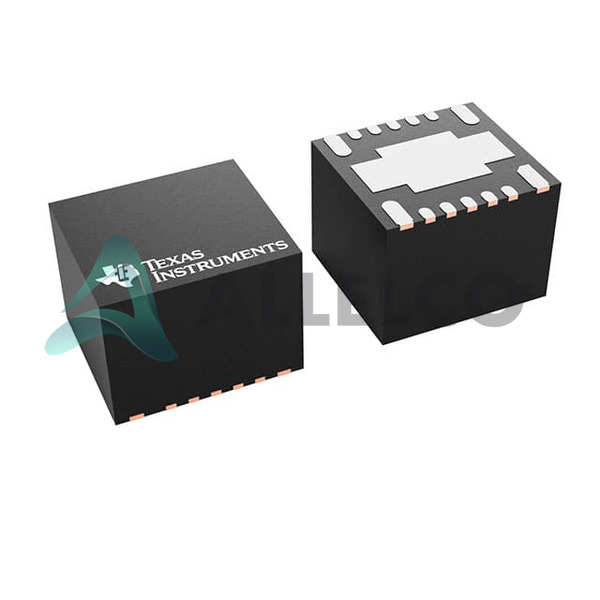

TPSM560R6HRDAR - Texas Instruments

Manufacturer Part Number

TPSM560R6HRDAR

Manufacturer

Texas Instruments

Introduction

Compact, non-isolated point-of-load (PoL) power module with adjustable output voltage and standby output.

Product Features and Performance

Adjustable output voltage from 1V to 16V

Standby output voltage

High efficiency up to 86%

Wide input voltage range of 4.2V to 60V

Operates over -40°C to 125°C temperature range

Compact 5mm x 5.5mm package

Product Advantages

Adjustable output voltage for flexibility

Standby output for power saving

High efficiency for reduced power consumption

Wide input voltage range for versatility

Wide operating temperature range for reliability

Key Technical Parameters

Input voltage range: 4.2V to 60V

Output voltage: 1V to 16V, adjustable

Maximum output current: 600mA

Output power: 9.6W

Efficiency: Up to 86%

Operating temperature: -40°C to 125°C

Quality and Safety Features

RoHS compliant

15-PowerBQFN package for reliable surface mount assembly

Tested and qualified for commercial applications

Compatibility

Suitable for a wide range of commercial and industrial applications

Application Areas

Information Technology Equipment (ITE)

Industrial control systems

Instrumentation and measurement equipment

Telecommunications infrastructure

Product Lifecycle

Currently in production

No known plans for discontinuation

Replacement or upgrade models may be available in the future

Key Reasons to Choose This Product

Adjustable output voltage for customized power requirements

Standby output for power-saving features

High efficiency for reduced energy consumption and heat generation

Wide input voltage and temperature range for design flexibility

Compact package size for space-constrained applications

Reliable surface mount design for ease of assembly
