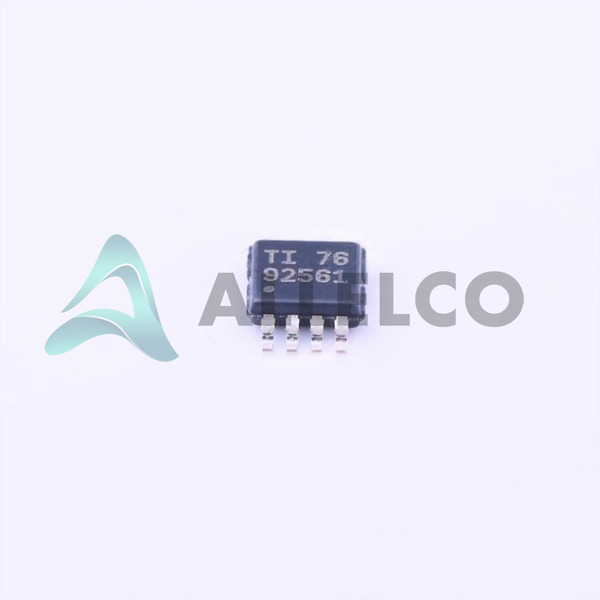

TPS92561DGNR - Texas Instruments

Manufacturer Part Number

TPS92561DGNR

Manufacturer

Texas Instruments

Introduction

The TPS92561DGNR is an integrated circuit designed for power management, specifically for driving LEDs.

Product Features and Performance

AC DC Offline Switcher

Step-Up (Boost) topology

Compatible with Triac dimming solutions

Suitable for single output channel applications

Does not include internal switches

Can handle a wide supply voltage range from 6.5V to 42V

Product Advantages

High-temperature operational range from -40°C to 125°C

Supports surface mount technology for easier installation on PCBs

Available in a space-saving 8-TSSOP, 8-MSOP package with an exposed pad for improved heat dissipation

Key Technical Parameters

Minimum Supply Voltage: 6.5V

Maximum Supply Voltage: 42V

Operating Temperature Range: -40°C to 125°C

Quality and Safety Features

Built to comply with industry-standard regulations

Features thermal protection mechanisms

Compatibility

Compatible with Triac dimmers

Designed for use in lighting applications

Application Areas

LED Lighting Systems

Residential and commercial lighting

Architectural lighting

Product Lifecycle

Active product status, not nearing discontinuation

Ongoing support and availability of replacements or upgrades

Several Key Reasons to Choose This Product

Reliability and performance guaranteed by Texas Instruments

Flexibility in supply voltage range caters to a variety of LED lighting solutions

Extended operational temperature range suitable for harsh environments

Simple to integrate due to its surface-mountable design and standard package size

Industry-compliant quality and safety standards ensure longevity and safe operation
