HomeProductsIntegrated Circuits (ICs)PMIC - Voltage Regulators - LinearTPS7B6950DBVR

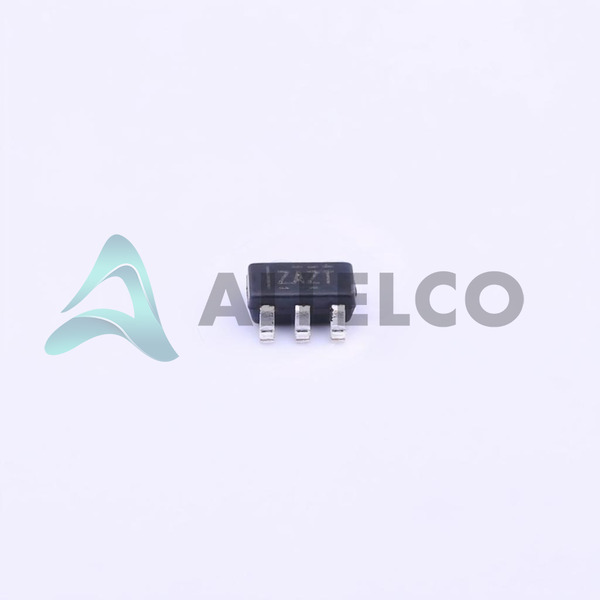

TPS7B6950DBVR Image
TPS7B6950DBVR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

TPS7B6950DBVR - Texas Instruments

Manufacturer Part Number
TPS7B6950DBVR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS7B6950DBVR
ECAD Model
Parts Description
IC REG LINEAR 5V 150MA SOT23-5
Detailed Description
Package
SC-74A, SOT-753
Data sheet
TPS7B6950DBVR.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 133590

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

TPS7B6950DBVR Tech Specifications
Texas Instruments - TPS7B6950DBVR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS7B6950DBVR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage Dropout (Max) 0.8V @ 100mA
Voltage - Output (Min/Fixed) 5V
Voltage - Output (Max) -
Voltage - Input (Max) 40V
Supplier Device Package SOT-23-5
Series -
Protection Features Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Package / Case SC-74A, SOT-753
Package Tape & Reel (TR)
Product Attribute Attribute Value
PSRR 60dB (100Hz)
Output Type Fixed
Output Configuration Positive
Operating Temperature -40°C ~ 105°C
Number of Regulators 1
Mounting Type Surface Mount
Current - Quiescent (Iq) 25 µA
Current - Output 150mA
Control Features -
Base Product Number TPS7B6950

Parts Introduction

Manufacturer Part Number

TPS7B6950DBVR

Manufacturer

Texas Instruments

Introduction

Low Dropout Regulator Designed for Power-Sensitive Applications

Product Features and Performance

Fixed 5V Output Voltage

Low Dropout Voltage of 0.8V @ 100mA

150mA Output Current Capacity

Excellent PSRR of 60dB at 100Hz

Product Advantages

High Input Voltage Range up to 40V

Ultra-Low Quiescent Current of 25 µA

Thermal and Overcurrent Protection

Under Voltage Lockout Feature

Key Technical Parameters

Voltage - Input (Max): 40V

Voltage - Output (Min/Fixed): 5V

Current - Output: 150mA

PSRR: 60dB (100Hz)

Quality and Safety Features

Over Current Protection

Over Temperature Protection

Short Circuit Protection

Under Voltage Lockout

Compatibility

SC-74A, SOT-753 Package Compatible with Surface Mount Technology

Application Areas

Automotive Electronics

Power Management Solutions

Portable Devices

Product Lifecycle

Active Product Status

Anticipate Long-term Availability

Several Key Reasons to Choose This Product

High Reliability in Managing Voltage Variations

Designed for Harsh Environmental Conditions

Optimized for Energy-Sensitive Applications

Reduced Power Consumption due to Low Quiescent Current

Easy Integration with Standard Surface Mount Assembly Processes

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS7B6950DBVR

Product Attribute TPS7B6950DBVR TPS7B8125QDGNRQ1 TPS7B7702QPWPRQ1 TPS7B6925QDBVRQ1
Part Number TPS7B6950DBVR TPS7B8125QDGNRQ1 TPS7B7702QPWPRQ1 TPS7B6925QDBVRQ1
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Current - Quiescent (Iq) 25 µA 3.5 µA 1 mA 25 µA
Package / Case SC-74A, SOT-753 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad 16-PowerTSSOP (0.173', 4.40mm Width) SC-74A, SOT-753
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Voltage Dropout (Max) 0.8V @ 100mA 0.65V @ 150mA 0.5V @ 100mA 1.58V @ 100mA
Output Configuration Positive Positive Positive Positive
Operating Temperature -40°C ~ 105°C -40°C ~ 125°C (TA) -40°C ~ 150°C -40°C ~ 150°C
Voltage - Input (Max) 40V 40V 40V 40V
Output Type Fixed Fixed Adjustable Fixed
PSRR 60dB (100Hz) 60dB (100Hz) 73dB (100Hz) 60dB (100Hz)
Protection Features Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Current - Output 150mA 150mA 300mA 150mA
Voltage - Output (Max) - - 20V -
Control Features - Enable Current Limit, Enable -
Series - Automotive, AEC-Q100 Automotive, AEC-Q100 Automotive, AEC-Q100
Number of Regulators 1 1 2 1
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Supplier Device Package SOT-23-5 8-HVSSOP 16-HTSSOP SOT-23-5
Voltage - Output (Min/Fixed) 5V 2.5V 1.5V 2.5V
Base Product Number TPS7B6950 TPS7B8125 TPS7B7702 TPS7B6925

TPS7B6950DBVR Datasheet PDF

Download TPS7B6950DBVR pdf datasheets and Texas Instruments documentation for TPS7B6950DBVR - Texas Instruments.
