HomeProductsIntegrated Circuits (ICs)PMIC - Voltage Regulators - LinearTPS7A5201RPSR

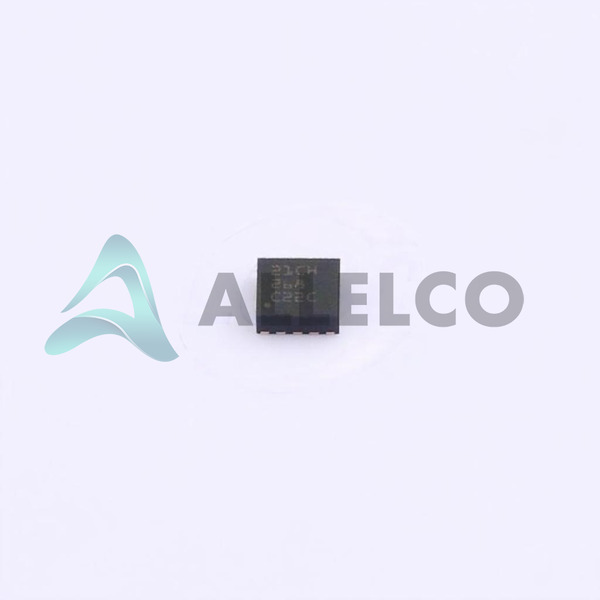

TPS7A5201RPSR Image
TPS7A5201RPSR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS7A5201RPSR - Texas Instruments

Manufacturer Part Number
TPS7A5201RPSR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS7A5201RPSR
ECAD Model
Parts Description
IC REG LINEAR POS ADJ 2A 12VQFN
Package
12-VFQFN
Data sheet
TPS7A5201RPSR.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 25964

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS7A5201RPSR Tech Specifications
Texas Instruments - TPS7A5201RPSR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS7A5201RPSR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage Dropout (Max) 0.225V @ 2A
Voltage - Output (Min/Fixed) 0.8V
Voltage - Output (Max) 5.15V
Voltage - Input (Max) 6.5V
Supplier Device Package 12-VQFN-HR (2.2x2.5)
Series -
Protection Features Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Package / Case 12-VFQFN
Package Tape & Reel (TR)
PSRR 44dB ~ 50dB (10kHz ~ 500kHz)
Product Attribute Attribute Value
Output Type Adjustable
Output Configuration Positive
Operating Temperature -40°C ~ 125°C (TJ)
Number of Regulators 1
Mounting Type Surface Mount
Current - Supply (Max) 5 mA
Current - Quiescent (Iq) 4 mA
Current - Output 2A
Control Features Enable, Power Good, Soft Start
Base Product Number TPS7A5201

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS7A5201RPSR

Manufacturer

Texas Instruments

Introduction

Low Dropout Regulator for Efficient Power Management

Product Features and Performance

Adjustable Output Voltage Range 0.8V to 5.15V

2A Output Current Capability

Low Dropout Voltage of 0.225V at 2A Load

Low Quiescent Current of 4 mA

High PSRR of 44dB to 50dB from 10kHz to 500kHz

Product Advantages

High Efficiency for Portable Applications

Stable with Ceramic Output Capacitors

Fast Transient Response

Key Technical Parameters

Input Voltage Max 6.5V

Voltage Dropout Max 0.225V

Output Current 2A

Quiescent Current 4 mA

Supply Current Max 5 mA

Power Supply Rejection Ratio 44dB ~ 50dB

Quality and Safety Features

Over Current Protection

Over Temperature Protection

Under Voltage Lockout

Compatibility

Compatible with Ceramic, Tantalum, and Aluminum Electrolytic Capacitors

Application Areas

Consumer Electronics

Telecommunications

Industrial

Healthcare

Product Lifecycle

Active Product with Ongoing Support

Several Key Reasons to Choose This Product

Efficient Power Conversion for Longer Battery Life

Support for a Broad Range of Output Capacitors

Enhanced Thermal Performance with 12-VFQFN Package

Integration of Multiple Protection Features to Ensure Safe Operation

Versatile for Use in Multiple Industries and Applications

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS7A5201RPSR

Product Attribute TPS7A5201RPSR TPS7A5401QRGRRQ1 TPS7A4901DGNR TPS7A4901DRBT
Part Number TPS7A5201RPSR TPS7A5401QRGRRQ1 TPS7A4901DGNR TPS7A4901DRBT
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Output Type Adjustable Adjustable Adjustable Adjustable
Operating Temperature -40°C ~ 125°C (TJ) -40°C ~ 150°C (TJ) -40°C ~ 125°C -40°C ~ 125°C
Output Configuration Positive Positive Positive Positive
Protection Features Over Current, Over Temperature, Under Voltage Lockout (UVLO) Over Temperature, Reverse Polarity Over Current, Over Temperature, Under Voltage Lockout (UVLO) Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Current - Supply (Max) 5 mA - 800 µA 800 µA
Voltage - Output (Max) 5.15V 5.1V 33V 33V
Current - Quiescent (Iq) 4 mA - 100 µA 100 µA
Series - Automotive, AEC-Q100 - -
Package / Case 12-VFQFN 20-VFQFN Exposed Pad 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad 8-VDFN Exposed Pad
Voltage - Input (Max) 6.5V 6.5V 35V 35V
Voltage - Output (Min/Fixed) 0.8V 0.8V 1.194V 1.194V
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Supplier Device Package 12-VQFN-HR (2.2x2.5) 20-VQFN (3.5x3.5) 8-HVSSOP 8-SON (3x3)
PSRR 44dB ~ 50dB (10kHz ~ 500kHz) 42dB ~ 25dB (10kHz ~ 500kHz) 72dB (120Hz) 72dB (120Hz)
Control Features Enable, Power Good, Soft Start Enable Enable Enable
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Number of Regulators 1 1 1 1
Current - Output 2A 4A 150mA 150mA
Base Product Number TPS7A5201 TPS7A5401 TPS7A4901 TPS7A4901
Voltage Dropout (Max) 0.225V @ 2A 0.51V @ 4A 0.6V @ 150mA 0.6V @ 150mA

TPS7A5201RPSR Datasheet PDF

Download TPS7A5201RPSR pdf datasheets and Texas Instruments documentation for TPS7A5201RPSR - Texas Instruments.
