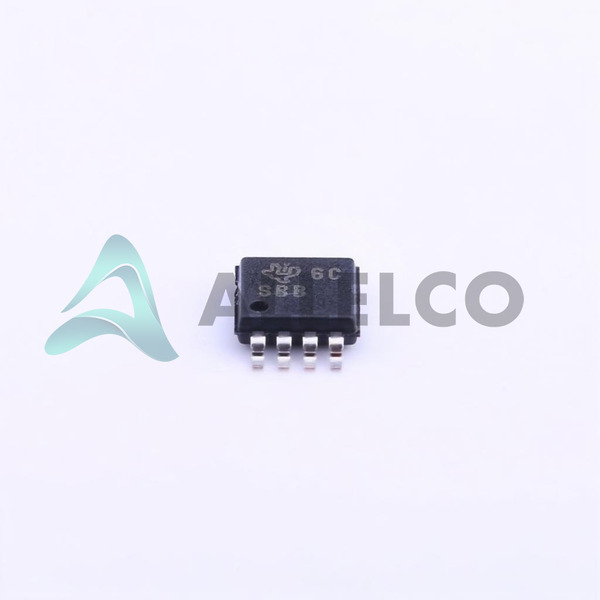

TPS7A4101DGNT - Texas Instruments

Manufacturer Part Number

TPS7A4101DGNT

Manufacturer

Texas Instruments

Introduction

High-performance linear voltage regulator

Designed for low-dropout and low-noise applications

Product Features and Performance

Adjustable output voltage from 1.175V to 48V

50mA output current capability

Low quiescent current of 65μA

High power supply rejection ratio (PSRR) of 65dB at 100Hz

Integrated over-current, over-temperature, and under-voltage lockout (UVLO) protection

Enable control feature

Product Advantages

Excellent line and load regulation

Low noise and fast transient response

Compact 8-pin HVSSOP package

Wide operating temperature range of -40°C to 125°C

Key Technical Parameters

Input voltage range: 50V maximum

Output voltage range: 1.175V to 48V

Output current: 50mA maximum

Quiescent current: 65μA

Voltage dropout: 1.3V at 50mA

Quality and Safety Features

RoHS3 compliant

Integrated protection features

Compatibility

Surface mount package compatible with standard assembly processes

Application Areas

Low-power analog and digital circuits

Battery-powered devices

Industrial and medical equipment

Product Lifecycle

Current product, not nearing discontinuation

Replacement and upgrade options available from Texas Instruments

Key Reasons to Choose This Product

Excellent performance in low-dropout and low-noise applications

Wide output voltage range and current capability

Integrated protection features for reliable operation

Small, space-saving package

Wide operating temperature range for diverse applications

Availability of replacement and upgrade options from the manufacturer
