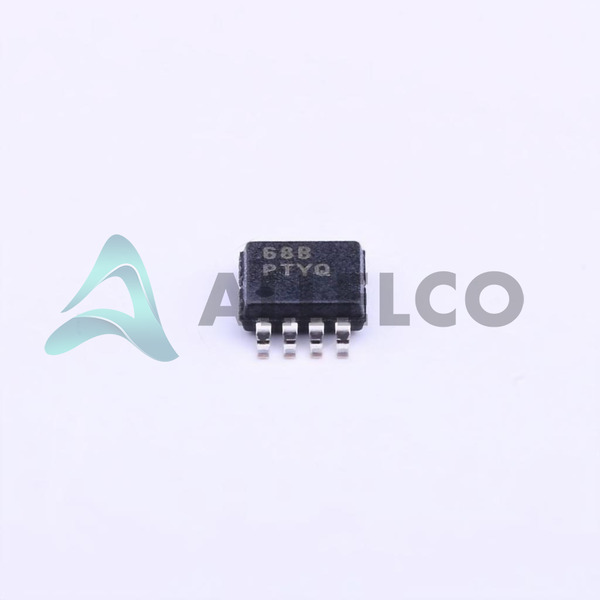

TPS7A1601DGNR - Texas Instruments

Manufacturer Part Number

TPS7A1601DGNR

Manufacturer

Texas Instruments

Introduction

High-performance, low-dropout, linear voltage regulator

Product Features and Performance

Adjustable output voltage from 1.2V to 18.5V

100mA output current

Low quiescent current of 15 μA

Wide input voltage range up to 60V

High power supply rejection ratio (PSRR) of 50dB at 100Hz

Integrated protection features: overcurrent, overtemperature, and undervoltage lockout (UVLO)

Integrated control features: enable and power good

Product Advantages

Excellent transient response

Stable operation with low ESR ceramic capacitors

Low dropout voltage of 0.5V at 100mA

Small 8-pin HVSSOP package

Key Technical Parameters

Output Voltage Range: 1.2V to 18.5V

Output Current: 100mA

Input Voltage Range: Up to 60V

Quiescent Current: 15 μA

PSRR: 50dB at 100Hz

Dropout Voltage: 0.5V at 100mA

Quality and Safety Features

Robust protection against overcurrent, overtemperature, and UVLO

Compliant with RoHS3 regulations

Compatibility

Compatible with a wide range of electronic systems and applications

Application Areas

Suitable for powering low-power analog and digital circuits

Ideal for portable electronics, industrial equipment, and automotive applications

Product Lifecycle

Currently available, not nearing discontinuation

Replacement or upgrade options available from Texas Instruments

Several Key Reasons to Choose This Product

Excellent performance and efficiency

Compact and space-saving 8-pin HVSSOP package

Robust protection features for reliable operation

Wide input voltage range and adjustable output voltage

Low quiescent current for extended battery life in portable applications

Compatibility with a variety of electronic systems and applications
