HomeProductsIntegrated Circuits (ICs)PMIC - Voltage Regulators - LinearTPS79325DBVR

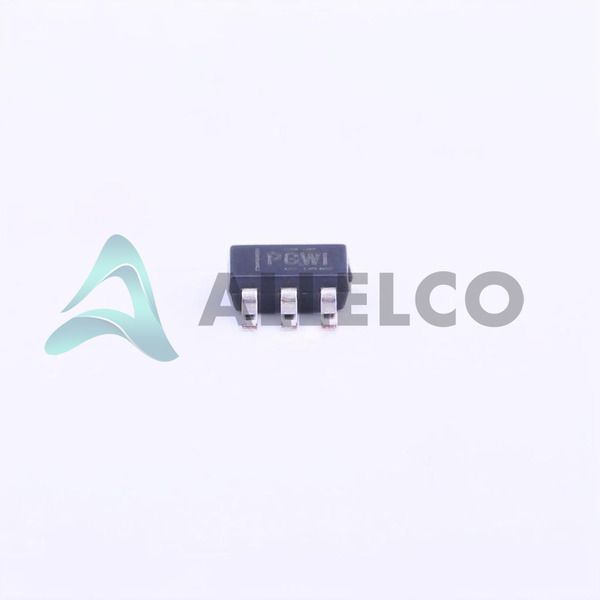

TPS79325DBVR Image
TPS79325DBVR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

TPS79325DBVR - Texas Instruments

Manufacturer Part Number
TPS79325DBVR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS79325DBVR
ECAD Model
Parts Description
IC REG LINEAR 2.5V 200MA SOT23-5
Detailed Description
Package
SC-74A, SOT-753
Data sheet
TPS79325DBVR.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 326450

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

TPS79325DBVR Tech Specifications
Texas Instruments - TPS79325DBVR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS79325DBVR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage Dropout (Max) -
Voltage - Output (Min/Fixed) 2.5V
Voltage - Output (Max) -
Voltage - Input (Max) 5.5V
Supplier Device Package SOT-23-5
Series -
Protection Features Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Package / Case SC-74A, SOT-753
Package Tape & Reel (TR)
Product Attribute Attribute Value
PSRR 70dB ~ 43dB (100Hz ~ 100kHz)
Output Type Fixed
Output Configuration Positive
Operating Temperature -40°C ~ 150°C
Number of Regulators 1
Mounting Type Surface Mount
Current - Quiescent (Iq) 220 µA
Current - Output 200mA
Control Features Enable
Base Product Number TPS79325

Parts Introduction

Manufacturer Part Number

TPS79325DBVR

Manufacturer

Texas Instruments

Introduction

Low Dropout Voltage Regulator for Power Management Applications

Product Features and Performance

Single LDO Regulator

Stable with Low-ESR Ceramic Capacitors

High Power Supply Rejection Ratio (PSRR)

Low Quiescent Current

Product Advantages

High Thermal Performance

Excellent Line and Load Transient Response

Multiple Built-in Protection Features

Key Technical Parameters

Input Voltage up to 5.5V

Fixed Output Voltage of 2.5V

200mA Output Current Capacity

Quiescent Current of 220µA

PSRR: 70dB at 100Hz to 43dB at 100kHz

Quality and Safety Features

Over Current Protection

Over Temperature Protection

Reverse Polarity Protection

Under Voltage Lockout (UVLO)

Compatibility

Compatible with Surface Mount Technology

Designed for SC-74A, SOT-753 Package Footprint

Application Areas

Consumer Electronics

Telecommunications

Industrial

Portable Devices

Product Lifecycle

Active Status

Not Nearing Discontinuation

Replacements or Upgrades Available

Several Key Reasons to Choose This Product

High-Performance Voltage Regulation

Reliability at Extended Operating Temperatures (-40°C to 150°C)

Low Dropout Suitable for Battery-Powered Devices

Energy Efficient with Low Quiescent Current

Robust Protection Features Ensure Long-term Stability

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS79325DBVR

Product Attribute TPS79325DBVR TPS793285DBVR TPS79318DBVR TPS79318DBVREP
Part Number TPS79325DBVR TPS793285DBVR TPS79318DBVR TPS79318DBVREP
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
PSRR 70dB ~ 43dB (100Hz ~ 100kHz) 70dB ~ 43dB (100Hz ~ 100kHz) 70dB ~ 43dB (100Hz ~ 100kHz) 70dB ~ 43dB (100Hz ~ 100kHz)
Current - Quiescent (Iq) 220 µA 220 µA 220 µA 220 µA
Operating Temperature -40°C ~ 150°C -40°C ~ 150°C -40°C ~ 150°C -40°C ~ 125°C
Current - Output 200mA 200mA 200mA 200mA
Protection Features Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Package / Case SC-74A, SOT-753 SC-74A, SOT-753 SC-74A, SOT-753 SC-74A, SOT-753
Supplier Device Package SOT-23-5 SOT-23-5 SOT-23-5 SOT-23-5
Voltage - Input (Max) 5.5V 5.5V 5.5V 5.5V
Voltage - Output (Min/Fixed) 2.5V 2.85V 1.8V 1.8V
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Output Configuration Positive Positive Positive Positive
Voltage Dropout (Max) - 0.2V @ 200mA - -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Control Features Enable Enable Enable Enable
Base Product Number TPS79325 TPS793285 TPS79318 TPS79318
Number of Regulators 1 1 1 1
Series - - - -
Voltage - Output (Max) - - - -
Output Type Fixed Fixed Fixed Fixed

TPS79325DBVR Datasheet PDF

Download TPS79325DBVR pdf datasheets and Texas Instruments documentation for TPS79325DBVR - Texas Instruments.
