Manufacturer Part Number

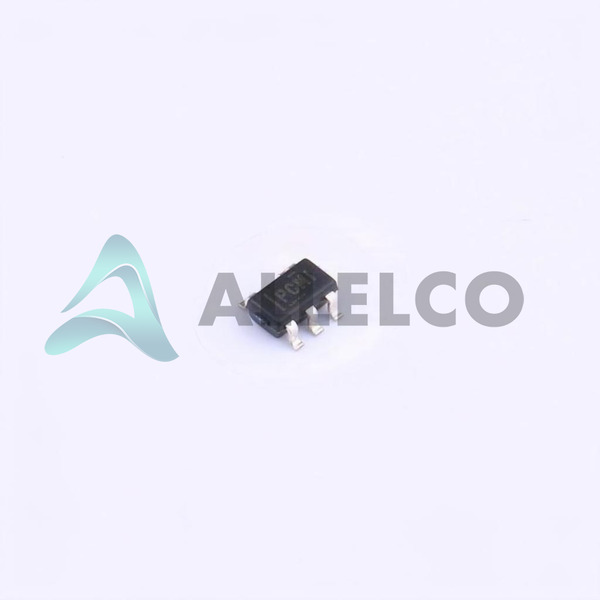

TPS76930DBVR
Manufacturer
Texas Instruments
Introduction
Low Dropout Regulator with Fixed 3V Output Voltage
Product Features and Performance
Low Dropout Voltage of 0.23V at 100mA Load
Output Current of 100mA
Low Quiescent Current of 28 µA
High PSRR of 60dB at 1kHz
Enable Pin for On/Off Control
Product Advantages
High Efficiency for Power-sensitive Applications
Tiny SOT-23-5 Package Saves Board Space
Long Battery Life Due to Low Iq
Stable with Low-ESR Ceramic Output Capacitors
Key Technical Parameters
Input Voltage up to 10V
Fixed Output Voltage of 3V
Current Output Capability of 100mA
Maximum Dropout Voltage of 0.23V
60dB Power Supply Rejection Ratio
Quality and Safety Features
Over Current Protection
Over Temperature Protection
Reverse Polarity Protection
Compatibility
Suitable for Surface Mount Technology
Application Areas
Battery-powered Devices
Handheld Equipment
Microcontrollers and Digital Logic
Product Lifecycle
Active Status
Standard Production Cycle with No Near-term Discontinuation
Reasons to Choose This Product
High Reliability and Robust Protection Features
Low Dropout Suitable for Low Voltage Applications
Optimized for Low-power Consumption
Wide Operating Temperature Range from -40°C to 125°C
Easy Integration into Compact System Designs
