Manufacturer Part Number

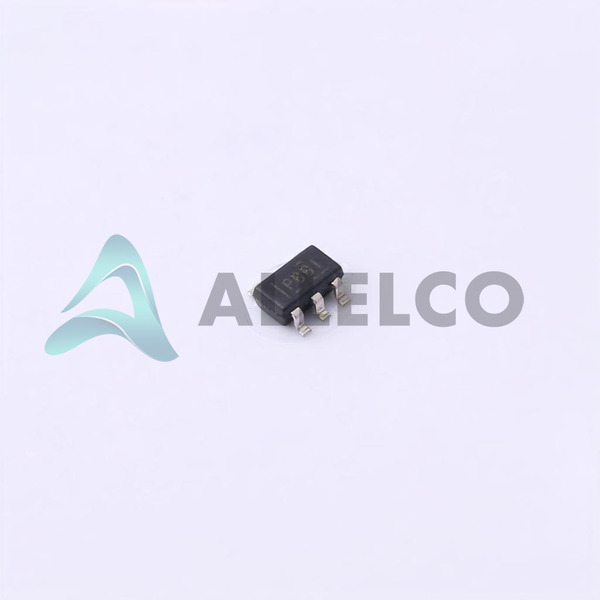

TPS76325DBVT
Manufacturer
Texas Instruments
Introduction
Low Dropout Regulator for Low-Power Applications
Product Features and Performance
Positive Output Configuration
Fixed Output Type
Single Regulator Design
Maximum Input Voltage of 10V
Fixed Output Voltage of 2.5V
Maximum Voltage Dropout of 0.6V at 150mA Load
Output Current Capacity of 150mA
Low Quiescent Current of 100 µA
Maximum Supply Current of 140 µA
PSRR of 60dB at 1kHz
Product Advantages
High PSRR for Noise Reduction
Low Dropout for Improved Efficiency
Low Quiescent Current for Power Saving
Thermal and Over Current Protection for Safety
Enable Control Feature for Power Management
Key Technical Parameters
Input Voltage (Max): 10V
Output Voltage (Min/Fixed): 2.5V
Current - Output: 150mA
PSRR: 60dB (1kHz)
Operating Temperature: -40°C to 125°C
Quality and Safety Features
Over Current Protection
Over Temperature Protection
Reverse Polarity Protection
Compatibility
Surface Mount Compatible
SC-74A, SOT-753 Package
Application Areas
Consumer Electronics
Industrial Controls
Portable Devices
Power Management Systems
Product Lifecycle
Last Time Buy Status
Certain Replacements or Upgrades Available
Several Key Reasons to Choose This Product
High Reliability for Critical Applications
Efficient Power Conversion for Battery-Operated Devices
Compact SOT-23 Size for Space-Constrained Applications
Wide Operating Temperature Range for Harsh Environments
Easy Integration with Enable Pin Control Feature
