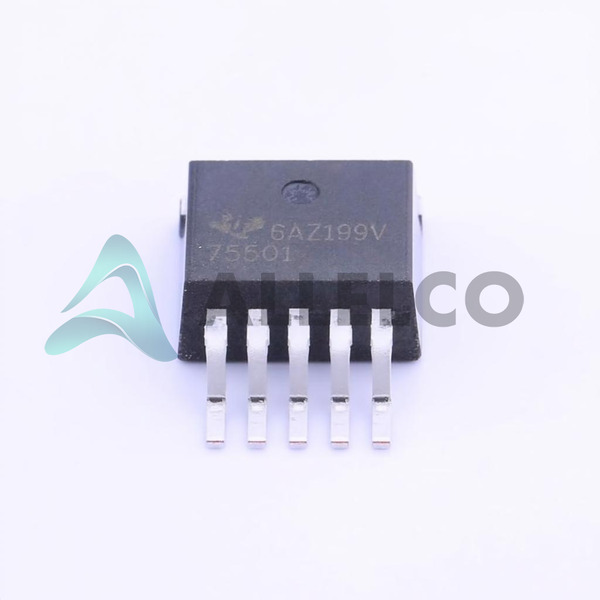

TPS75501KTTR - Texas Instruments

Manufacturer Part Number

TPS75501KTTR

Manufacturer

Texas Instruments

Introduction

Integrated Circuit (IC)

Power Management IC (PMIC)

Voltage Regulator Linear

Product Features and Performance

Adjustable output voltage from 1.22V to 5V

Output current up to 5A

Low quiescent current of 200 μA

High Power Supply Rejection Ratio (PSRR) of 60dB at 100Hz

Protection features: Over current, Over temperature, Reverse polarity, Under voltage lockout (UVLO)

Control features: Enable, Power good

Product Advantages

Adjustable output voltage for flexible power supply design

High output current capability

Low quiescent current for efficient power consumption

Robust protection features for reliable operation

Integrated control features for easy system integration

Key Technical Parameters

Package: TO-263-6, DPak (5 Leads + Tab), TO-263BA

Mounting Type: Surface Mount

Operating Temperature: -40°C to 125°C

RoHS Compliant

Quality and Safety Features

Rigorously tested for quality and reliability

RoHS3 compliant for environmental safety

Compatibility

Suitable for a wide range of electronic applications that require an adjustable linear voltage regulator

Application Areas

Portable electronics

Industrial equipment

Telecommunications systems

Automotive electronics

Product Lifecycle

Currently in production

Replacement or upgraded models may become available in the future

Key Reasons to Choose This Product

Adjustable output voltage for flexible power supply design

High output current capability for powering various loads

Low quiescent current for efficient power consumption

Robust protection features for reliable operation

Integrated control features for easy system integration

Proven quality and reliability from a trusted manufacturer
