Manufacturer Part Number

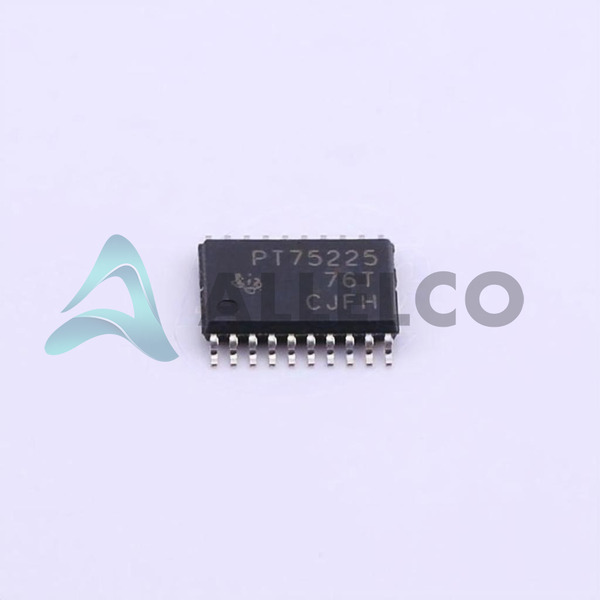

TPS75225QPWP
Manufacturer
Texas Instruments
Introduction
TPS75225QPWP is a linear low dropout regulator designed for power-sensitive applications.
Product Features and Performance
Low dropout voltage
2A output current capacity
Quiescent current of 125µA
60dB PSRR at 100Hz
Enable and Power Good control features
Reset Output functionality
Product Advantages
High efficiency at low dropout voltages
Stable with low ESR output capacitors
Low quiescent current for power conservation
Good PSRR for noise-sensitive applications
Key Technical Parameters
Single regulator output
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 2.5V
Current - Output: 2A
Current - Quiescent (Iq): 125 µA
Quality and Safety Features
Protection against overcurrent
Overtemperature safety
Reverse polarity protection
Compatibility
Surface mount technology compatible
20-PowerTSSOP package for easy PCB design
Application Areas
Sensitive electronics requiring stable power supply
Portable devices
Telecommunication equipment
Microprocessor power supply
Product Lifecycle
Product status: Active
Not nearing discontinuation
Replacements or upgrades are available
Several Key Reasons to Choose This Product
Low dropout improves efficiency in battery-operated devices
Small footprint for space-constrained applications
Robust safety features give reliable operation
Low power consumption extends battery life
High PSRR ideal for RF and precision analog systems
