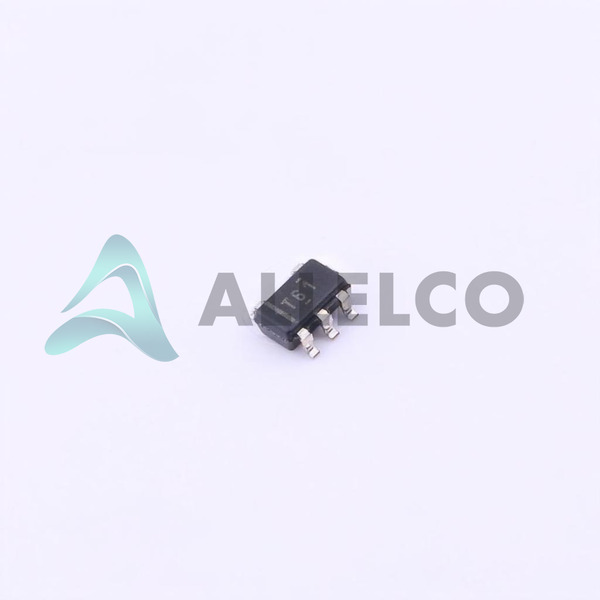

TPS73625MDBVREP - Texas Instruments

Manufacturer Part Number

TPS73625MDBVREP

Manufacturer

Texas Instruments

Introduction

The TPS73625MDBVREP is a high-performance, low-dropout linear regulator from Texas Instruments, ideal for power-sensitive applications.

Product Features and Performance

Output Configuration: Positive

Output Type: Fixed

Single Regulator Output

Input Voltage up to 5.5V

Minimum or Fixed Output Voltage: 2.5V

Voltage Dropout Maximum: 0.2V at 400mA load

Output Current: 400mA

Quiescent Current: 550 µA

Supply Current Maximum: 1 mA

Power Supply Rejection Ratio: 58dB to 37dB from 100Hz to 10kHz

Control Features: Enable function

Protection Features: Overcurrent, Over-temperature, and Reverse polarity protection

Operating Temperature Range: -55°C to 125°C

Mounting Type: Surface Mount

Package: SOT-23-5

Product Advantages

Optimal for battery-operated devices due to low dropout and quiescent current

Supports a wide range of input and output voltages suitable for various applications

High reliability with built-in protection features

Key Technical Parameters

Voltage Input (Max): 5.5V

Voltage Output (Min/Fixed): 2.5V

Current Output: 400mA

Voltage Dropout (Max): 0.2V @ 400mA

PSRR: 58dB ~ 37dB (100Hz ~ 10kHz)

Quality and Safety Features

Overcurrent Protection

Overtemperature Protection

Reverse Polarity Protection

Compatibility

Ideal for use in systems requiring a fixed 2.5V output with input voltages up to 5.5V

Application Areas

Battery-powered devices

Portable electronics

Low-power instrumentation

Product Lifecycle

Status: Active

Not currently nearing discontinuation, with continuous availability expected

Several Key Reasons to Choose This Product

Low dropout voltage enhances efficiency

Broad operating temperature range suitable for extreme environments

High PSRR ensuring stable output against input noise

Compact and reliable SOT-23-5 package

Comprehensive protective features ensure longevity and safe operation
