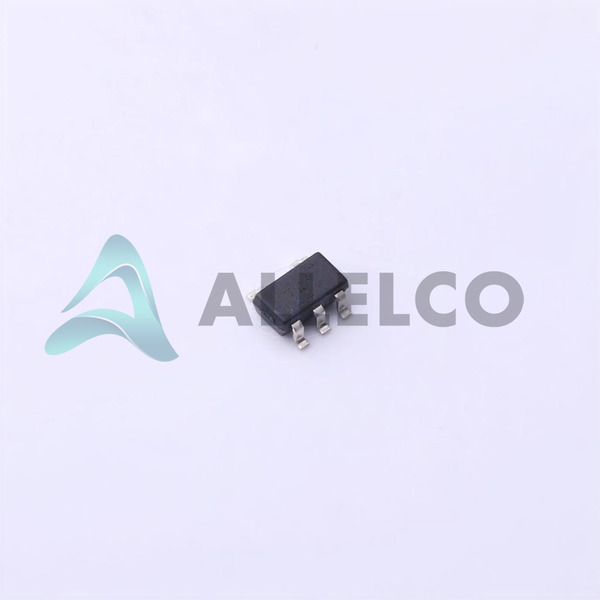

TPS73250DBVR - Texas Instruments

Manufacturer Part Number

TPS73250DBVR

Manufacturer

Texas Instruments

Introduction

The TPS73250DBVR is a low dropout regulator designed for power-sensitive applications.

Product Features and Performance

Input Voltage up to 5.5V

Fixed 5V Output Voltage

Max Output Current of 250mA

Low Dropout Voltage of 0.15V @ 250mA

Quiescent Current of 550 µA

Supply Current up to 950 µA

Good PSRR of 58dB ~ 37dB between 100Hz and 10kHz

Enable Control Feature

Product Advantages

High Accuracy Output Voltage

Low Dropout Voltage for Improved Efficiency

Stable with Low-ESR Capacitors

Low Quiescent Current for Power Saving

High PSRR for Noise Suppression

Key Technical Parameters

Output Type Fixed

Number of Regulators 1

Voltage - Input (Max) 5.5V

Voltage - Output (Min/Fixed) 5V

Current - Output 250mA

Current - Quiescent (Iq) 550 µA

PSRR 58dB ~ 37dB (100Hz ~ 10kHz)

Quality and Safety Features

Over Current Protection

Over Temperature Protection

Short Circuit Protection

Reverse Polarity Protection

Compatibility

Compatible with a wide range of capacitors for design flexibility

Application Areas

Ideal for battery-powered devices

Suitable for portable electronics

Useful in power-sensitive applications

Product Lifecycle

Status: Active

Availability of replacements or upgrades not provided

Several Key Reasons to Choose This Product

High-Performance Voltage Regulation for Sensitive Loads

Efficient Power Consumption for Battery-Operated Devices

Robust Protection Features Ensuring Long-Term Reliability

Compact SOT-23-5 Package Suitable for Space-Constrained Applications

Manufactured by a Trusted Leader in Semiconductor Solutions
