Manufacturer Part Number

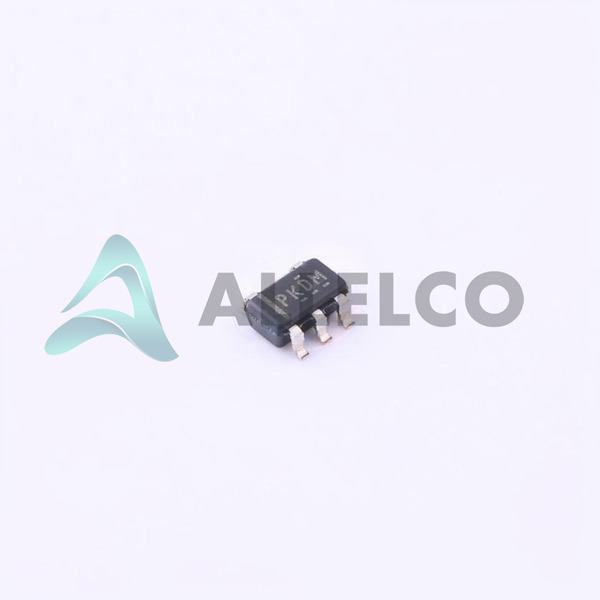

TPS73125MDBVREP
Manufacturer
Texas Instruments
Introduction
Linear voltage regulator integrated circuit (IC)
Product Features and Performance
Fixed 2.5V output voltage
150mA output current
Wide input voltage range up to 5.5V
Low 0.1V voltage dropout at 150mA
High power supply rejection ratio (PSRR) of 58dB to 37dB from 100Hz to 10kHz
Integrated protection features: Over-current, Over-temperature, Short-circuit, Reverse-polarity
Enable control feature
Product Advantages
Compact SOT-23-5 package
Reliable operation from -55°C to 125°C
Efficient linear voltage regulation
Robust protection features
Key Technical Parameters
Input Voltage Range: Up to 5.5V
Output Voltage: Fixed 2.5V
Output Current: 150mA
Quiescent Current: 550μA
Supply Current (Max): 750μA
Voltage Dropout (Max): 0.1V @ 150mA
PSRR: 58dB to 37dB (100Hz to 10kHz)
Quality and Safety Features
RoHS3 compliant
Integrated protection against over-current, over-temperature, short-circuit, and reverse-polarity
Compatibility
Surface mount (SMD) packaging
Compatible with various electronic devices and systems
Application Areas
Portable electronics
Battery-powered devices
Sensor and data acquisition systems
Industrial control and automation
Telecommunications equipment
Product Lifecycle
This product is currently in active production and widely available.
Replacements or upgrades may be available in the future as technology advances.
Key Reasons to Choose This Product
Reliable and efficient linear voltage regulation
Wide operating temperature range of -55°C to 125°C
Compact and space-saving SOT-23-5 package
Robust protection features to ensure safe and reliable operation
Suitable for a wide range of electronic applications
