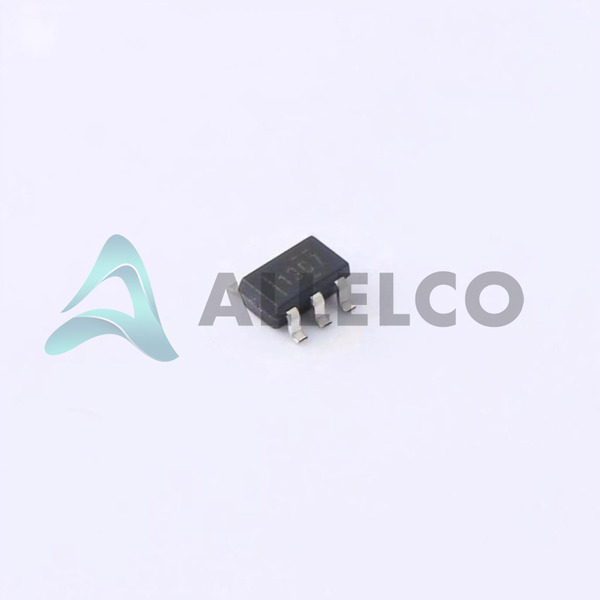

TPS709B33DBVR - Texas Instruments

Manufacturer Part Number

TPS709B33DBVR

Manufacturer

Texas Instruments

Introduction

Integrated Linear Voltage Regulator

Provides a fixed 3.3V output voltage

Product Features and Performance

Output current capability up to 150mA

Wide input voltage range up to 30V

Low dropout voltage of 1.4V @ 150mA

High power supply rejection ratio (PSRR) of 80dB to 52dB

Overload and thermal protection

Reverse current protection

Undervoltage lockout (UVLO)

Enable control feature

Product Advantages

Compact SOT-23-5 package

Wide operating temperature range of -40°C to 125°C

RoHS3 compliant

Key Technical Parameters

Output Voltage: 3.3V (fixed)

Output Current: 150mA

Input Voltage Range: Up to 30V

Quiescent Current: 2.05μA

Supply Current (max): 350μA

Quality and Safety Features

Overload and thermal protection

Reverse current protection

Undervoltage lockout (UVLO)

Compatibility

Surface mount, SOT-23-5 package

Application Areas

Portable equipment

Battery-powered devices

Industrial control systems

Telecommunications equipment

Product Lifecycle

This product is an active and currently available component from Texas Instruments.

Key Reasons to Choose This Product

Compact and space-saving SOT-23-5 package

Wide input voltage range and low dropout voltage for efficient operation

Robust protection features for reliable performance

Suitable for a wide range of applications, from portable devices to industrial systems

Backed by the reliability and technical support of Texas Instruments
