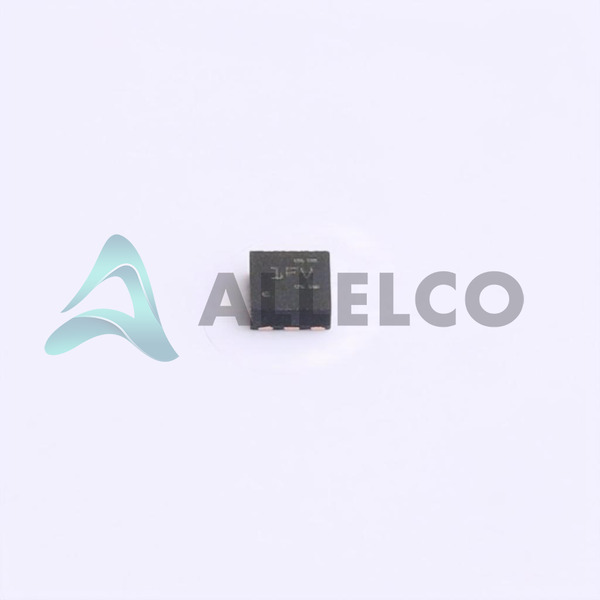

TPS70936DRVR - Texas Instruments

Manufacturer Part Number

TPS70936DRVR

Manufacturer

Texas Instruments

Introduction

The TPS70936DRVR is a fixed output, low-dropout (LDO) linear voltage regulator ideal for power-sensitive applications.

Product Features and Performance

Positive output configuration

Single regulator design

Low quiescent current of 2.25 µA

High power supply rejection ratio (PSRR) of 80dB to 52dB between 10Hz and 1kHz

Integrated protection features including over current, over temperature, reverse current, and under voltage lockout (UVLO)

Product Advantages

High efficiency due to low dropout voltage

Minimal power consumption in idle state enhances battery life in portable devices

Robust protection features enhance device reliability and safety

Key Technical Parameters

Output Type: Fixed

Voltage Input (Max): 30V

Voltage Output (Min/Fixed): 3.6V

Current Output: 150mA

Current Quiescent (Iq): 2.25 µA

Current Supply (Max): 350 µA

Operating Temperature Range: -40°C to 125°C

Mounting Type: Surface Mount

Quality and Safety Features

Over Current Protection

Over Temperature Protection

Reverse Current Protection

Under Voltage Lockout (UVLO)

Compatibility

Surface Mount compatible with 6-WDFN Exposed Pad and 6-WSON (2x2) package

Application Areas

Ideal for power management in space-constrained, sensitive electronics such as wearables, medical devices, and portable consumer electronics

Product Lifecycle

Currently in Active status

Not approaching discontinuation

Several Key Reasons to Choose This Product

Exceptionally low quiescent current extends battery life for portable applications

Robust temperature range and integrated safety features ensure stable performance under varying conditions

High PSRR value guarantees a stable output despite fluctuations in input voltage

Compact 6-WDFN and 6-WSON package options facilitate use in space-limited applications
