HomeProductsIntegrated Circuits (ICs)PMIC - LED DriversTPS68402A0RHFR

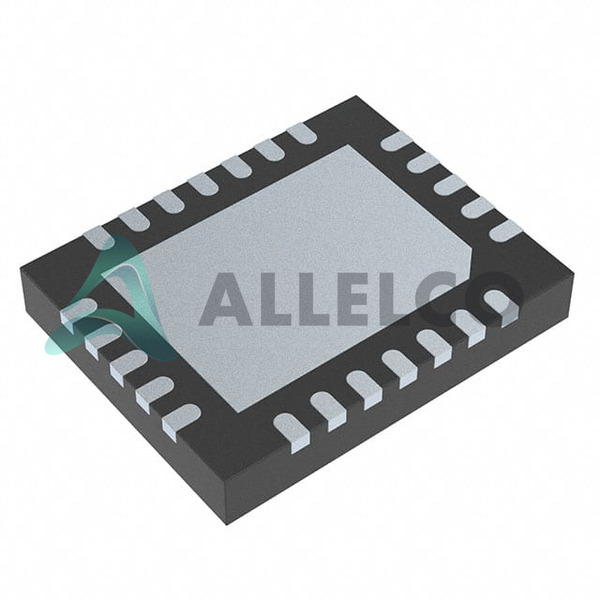

TPS68402A0RHFR Image
TPS68402A0RHFR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS68402A0RHFR - Texas Instruments

Manufacturer Part Number
TPS68402A0RHFR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS68402A0RHFR
ECAD Model
Parts Description
IC LED DRV RGLTR I2C 24VQFN
Package
24-VFQFN Exposed Pad
Data sheet
TPS68402A0RHFR.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 11430

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS68402A0RHFR Tech Specifications
Texas Instruments - TPS68402A0RHFR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS68402A0RHFR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply (Min) 2.7V
Voltage - Supply (Max) 5.5V
Voltage - Output 4.55V
Type DC DC Regulator
Topology Switched Capacitor (Charge Pump)
Supplier Device Package 24-VQFN (5x4)
Series -
Package / Case 24-VFQFN Exposed Pad
Package Tape & Reel (TR)
Product Attribute Attribute Value
Operating Temperature -30°C ~ 85°C (TA)
Number of Outputs 3
Mounting Type Surface Mount
Internal Switch(s) Yes
Frequency 1.25MHz
Dimming I²C
Current - Output / Channel 150mA
Base Product Number TPS68402
Applications Backlight

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS68402A0RHFR

Manufacturer

Texas Instruments

Introduction

Integrated circuit (IC) for driving light-emitting diodes (LEDs) in backlight applications

Product Features and Performance

Switched capacitor (charge pump) topology

3 LED driver outputs

Up to 150mA output current per channel

25MHz operating frequency

Wide 2.7V to 5.5V input voltage range

55V output voltage

Integrated dimming control

Supports linear and logarithmic dimming

Product Advantages

High efficiency charge pump design

Compact 24-VQFN (5x4) package

Integrated features reduce external component count

Wide operating temperature range of -30°C to 85°C

Key Technical Parameters

24-VQFN (5x4) package

Surface mount (SMT) mounting

RoHS3 compliant

Quality and Safety Features

Integrated over-temperature and over-current protection

Compatibility

Suitable for backlight applications in various electronic devices

Application Areas

Backlight for LCD displays, smartphones, tablets, and other portable electronics

Product Lifecycle

Currently in production

Replacement and upgrade options available from Texas Instruments

Several Key Reasons to Choose This Product

Efficient charge pump topology for high performance

Integrated features for compact and simplified design

Wide operating temperature range for versatile applications

Robust protection circuitry for reliable operation

Supported by a leading semiconductor manufacturer

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS68402A0RHFR

Product Attribute TPS68402A0RHFR TPS68470YFFR TPS68401C4YFFR TPS68470YFFT
Part Number TPS68402A0RHFR TPS68470YFFR TPS68401C4YFFR TPS68470YFFT
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Package / Case 24-VFQFN Exposed Pad 56-UFBGA, DSBGA 20-UFBGA, DSBGA 56-UFBGA, DSBGA
Topology Switched Capacitor (Charge Pump) Step-Down (Buck), Step-Up (Boost) Switched Capacitor (Charge Pump) Step-Down (Buck), Step-Up (Boost)
Frequency 1.25MHz - 1.25MHz -
Type DC DC Regulator DC DC Regulator DC DC Regulator DC DC Regulator
Series - - - -
Operating Temperature -30°C ~ 85°C (TA) 0°C ~ 85°C (TA) -30°C ~ 85°C (TA) 0°C ~ 85°C (TA)
Dimming I²C - I²C -
Applications Backlight Camera Flash Backlight Camera Flash
Voltage - Supply (Min) 2.7V 2.97V 2.7V 2.97V
Current - Output / Channel 150mA 1A (Flash) 150mA 1A (Flash)
Number of Outputs 3 3 3 3
Supplier Device Package 24-VQFN (5x4) 56-DSBGA (3.33x2.93) 20-DSBGA 56-DSBGA (3.33x2.93)
Base Product Number TPS68402 TPS68470 TPS68401 TPS68470
Internal Switch(s) Yes Yes Yes Yes
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Voltage - Supply (Max) 5.5V 3.63V 5.5V 3.63V
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Voltage - Output 4.55V - 4.55V -
