Manufacturer Part Number

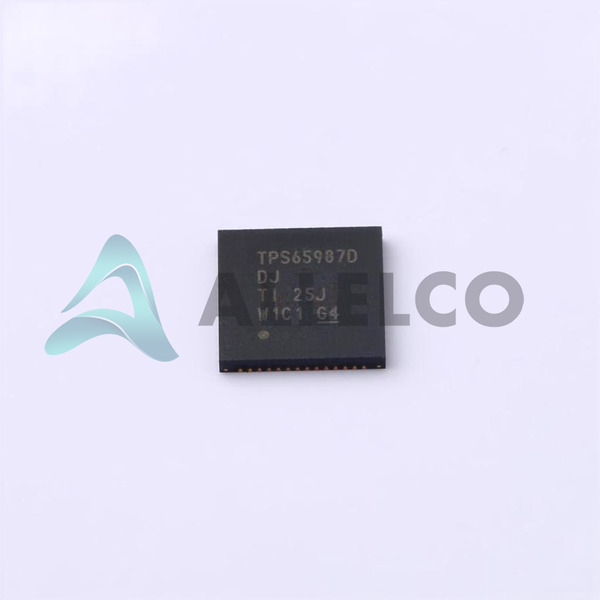

TPS65987DDJRSHR
Manufacturer
Texas Instruments
Introduction
The TPS65987DDJRSHR is a power management integrated circuit designed for USB Type-C controller applications.
Product Features and Performance
Integrated Power Path Management
Supports USB Power Delivery 3.0
Programmable Power Supply (PPS) support
I2C Interface for Configuration and Control
Dead Battery Provision
Auto Configuration Based on Cable Attachment
Product Advantages
High integration for reduced system footprint
Support for USB PD enables fast charging
Advanced power management for optimum energy efficiency
Flexible firmware update mechanism
Robust design suitable for various USB-C applications
Key Technical Parameters
Current - Supply: 8mA
Voltage - Supply: 3.14V ~ 3.45V
Operating Temperature Range: -10°C ~ 75°C
56-PowerVFQFN package for compact PCB design
Quality and Safety Features
Built-in protection features (overvoltage, overcurrent, and thermal)
Compliance with USB Type-C specifications
ESD Protection
Compatibility
Compatible with USB Type-C and USB Power Delivery protocols
Multi-vendor interoperability for wide-range adoption
Application Areas
Laptops and Desktop Computers
Smartphones and Tablets
Docking Stations
AC/DC Power Adapters
Other USB-C enabled devices
Product Lifecycle
Active Product Status
Not indicated as nearing discontinuation
Support for replacement or upgrade not specified
Several Key Reasons to Choose This Product
Industry-leading power management solution
Enhances the user experience with fast charging capabilities
Enables smaller and more efficient USB-C designs
Backed by Texas Instruments' reliability and support
Adaptive power management optimizes energy consumption
