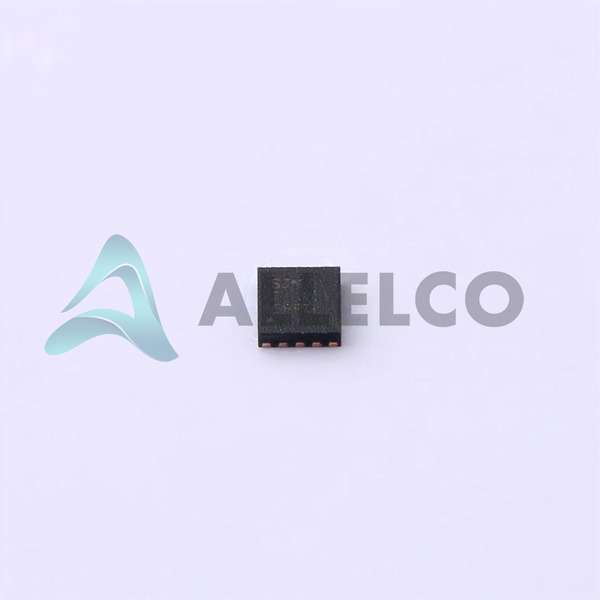

TPS65631WDSKR - Texas Instruments

Manufacturer Part Number

TPS65631WDSKR

Manufacturer

Texas Instruments

Introduction

Power Management Integrated Circuit for AMOLED Display Converters

Product Features and Performance

Dual Output Voltage Regulation

Wide Input Voltage Range: 2.9V to 4.5V

Multi-Channel Output: Two Outputs

Supports 4.6V and Variable Negative Voltage Output from -1.4V to -4.4V

Operating Temperature Range: -40°C to 85°C

Surface Mount Technology for PCB Assembly

Small Package Size: 10-WFDFN Exposed Pad

Designed for Efficient Power Conversion and Management

Product Advantages

High Integration for Compact Designs

Robust Thermal Performance with Exposed Pad

Advanced Power Management for AMOLED Displays

Optimized for Low-Power Devices

Key Technical Parameters

Input Voltage Range: 2.9V ~ 4.5V

Output Voltage 1: 4.6V

Output Voltage 2: -1.4V ~ -4.4V

Number of Outputs: 2

Operating Temperature: -40°C ~ 85°C

Mounting Type: Surface Mount

Package / Case: 10-WFDFN Exposed Pad

Supplier Device Package: 10-SON (2.5x2.5)

Quality and Safety Features

Built-In Protection Mechanisms

Compliance with Industry Standards

Extended Temperature Range for High Reliability

Compatibility

Designed for Use with AMOLED Display Panels

Compatible with a Variety of Power Management Applications

Application Areas

Smartphones and Portable Electronics

AMOLED Display Modules

Power Regulation Solutions for Compact Devices

Product Lifecycle

Active Product Status

Not Indicated as Nearing Discontinuation

Availability of Replacements or Upgrades Not Specified

Several Key Reasons to Choose This Product

Texas Instruments' Reputation for High-Quality and Reliable Components

Optimized Performance for AMOLED Displays

Dual Output Capabilities Supporting Both Positive and Negative Voltages

Compact Package Suitable for Space-Constrained Applications

Extended Operating Temperature Suitable for a Range of Environments

Easy Integration into Existing Systems with Standard Surface Mount Assembly
