HomeProductsIntegrated Circuits (ICs)PMIC - Power Management - SpecializedTPS65140PWPR

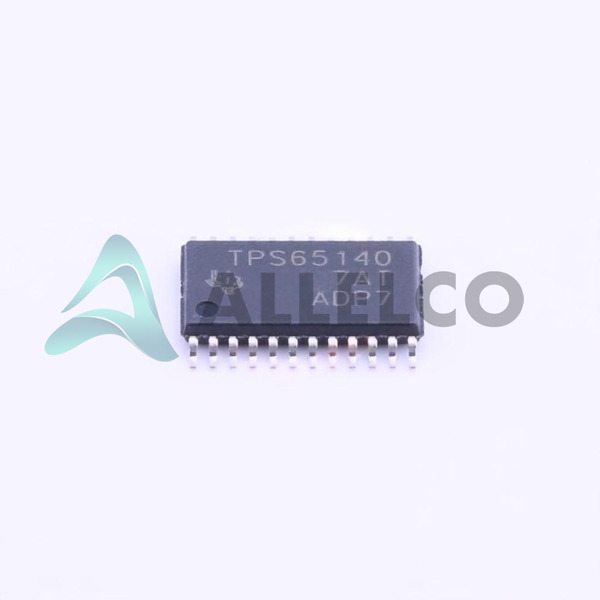

TPS65140PWPR Image
TPS65140PWPR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS65140PWPR - Texas Instruments

Manufacturer Part Number
TPS65140PWPR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS65140PWPR
ECAD Model
Parts Description
IC LCD SUPPLY TFT QUAD 24HTSSOP
Package
24-PowerTSSOP (0.173", 4.40mm Width)
Data sheet
TPS65140/41/45.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 24420

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS65140PWPR Tech Specifications
Texas Instruments - TPS65140PWPR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS65140PWPR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply 2.7V ~ 5.8V
Supplier Device Package 24-HTSSOP
Series -
Package / Case 24-PowerTSSOP (0.173", 4.40mm Width)
Package Tape & Reel (TR)
Product Attribute Attribute Value
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Current - Supply 700µA
Base Product Number TPS65140
Applications LCD Monitor, Notebook Display

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS65140PWPR

Manufacturer

Texas Instruments

Introduction

The TPS65140PWPR is designed for LCD monitor and notebook display power solutions.

Product Features and Performance

Integrated power switch

High efficiency due to step-up/down voltage regulation

Wide supply voltage range: 2.7V to 5.8V

700µA current supply

Thermal shutdown and overload protection

Low electromagnetic interference (EMI)

Product Advantages

High integration to save board space

Adjustable output voltage for design flexibility

Low power operation to enhance battery life

Key Technical Parameters

Supply Voltage: 2.7V to 5.8V

Operating Temperature: -40°C to 85°C

Output: Configurable for multiple display types

Quality and Safety Features

Built-in safety features including thermal shutdown

Overload protection

Compatibility

Designed for a range of LCD monitors and notebook displays

Application Areas

Power management for portable and battery-powered applications: LCD Monitors, Notebooks, and more

Product Lifecycle

Active status

Not currently flagged for discontinuation

Replacement or upgrade options not specified

Several Key Reasons to Choose This Product

Efficient power management for longer battery life

Versatile application range for several types of displays

Active lifecycle status ensures ongoing production and support

Sophisticated integrated safety mechanisms

Optimized form factor with 24-PowerTSSOP for space-sensitive designs

Manufactured by Texas Instruments, a trusted industry leader in power management solutions

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS65140PWPR

Product Attribute TPS65140PWPR TPS65140PWP TPS65140PWPRG4 TPS65141PWPR
Part Number TPS65140PWPR TPS65140PWP TPS65140PWPRG4 TPS65141PWPR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Package / Case 24-PowerTSSOP (0.173", 4.40mm Width) 24-PowerTSSOP (0.173", 4.40mm Width) 24-TSSOP (0.173", 4.40mm Width) Exposed Pad 24-PowerTSSOP (0.173', 4.40mm Width)
Series - - - -
Supplier Device Package 24-HTSSOP 24-HTSSOP 24-HTSSOP 24-HTSSOP
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Applications LCD Monitor, Notebook Display LCD Monitor, Notebook Display LCD Monitor, Notebook Display LCD Monitor, Notebook Display
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Current - Supply 700µA 700µA 700µA 700µA
Base Product Number TPS65140 TPS65140 TPS65140 TPS65141
Package Tape & Reel (TR) Tube Bulk Tape & Reel (TR)
Voltage - Supply 2.7V ~ 5.8V 2.7V ~ 5.8V 2.7V ~ 5.8V 2.7V ~ 5.8V

TPS65140PWPR Datasheet PDF

Download TPS65140PWPR pdf datasheets and Texas Instruments documentation for TPS65140PWPR - Texas Instruments.

PCN Design/Specification
Design 22/Feb/2022.pdf
HTML Datasheet
TPS65140/41/45.pdf

Customers Also Interested in
