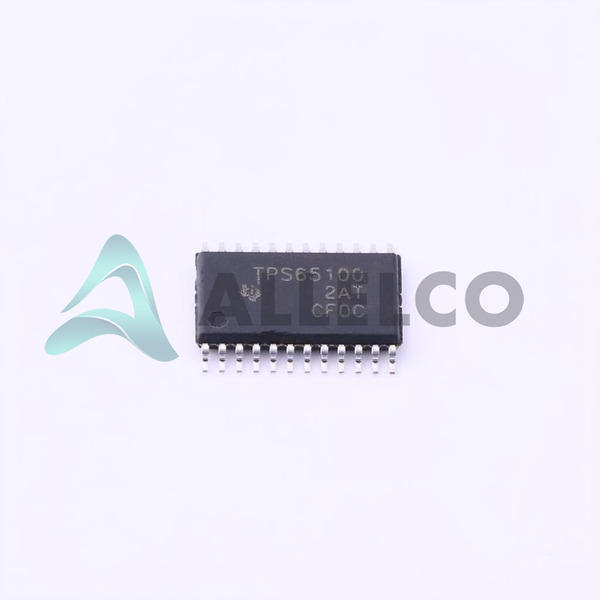

TPS65100PWP Image
TPS65100PWP Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

TPS65100PWP - Texas Instruments

Manufacturer Part Number
TPS65100PWP
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS65100PWP
ECAD Model
Parts Description
IC REG CTRLR TFT 4OUT 24HTSSOP
Detailed Description
Package
24-PowerTSSOP (0.173", 4.40mm Width)
Data sheet
TPS65100/01/05.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 19281

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

TPS65100PWP Tech Specifications
Texas Instruments - TPS65100PWP technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS65100PWP

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Output Multiple
Voltage - Input 2.7V ~ 5.8V
Supplier Device Package 24-HTSSOP
Series -
Package / Case 24-PowerTSSOP (0.173", 4.40mm Width)
Product Attribute Attribute Value
Package Tube
Operating Temperature -40°C ~ 85°C
Number of Outputs 4
Mounting Type Surface Mount
Base Product Number TPS65100
Applications Controller, TFT LCD

Parts Introduction

Manufacturer Part Number

TPS65100PWP

Manufacturer

Texas Instruments

Introduction

TPS65100PWP is a power management integrated circuit (PMIC) designed for TFT LCD controller applications.

Product Features and Performance

Integrated 4-channel output for versatile power supply

Wide input voltage range from 2.7V to 5.8V

Low-power consumption for energy efficiency

Over-temperature and over-current protection

Excellent thermal performance and stability

High-frequency operation reduces noise interference

Product Advantages

Multifunctional with built-in safety features

Saves board space with less external components required

High reliability and longevity in various environmental conditions

Key Technical Parameters

Input Voltage: 2.7V to 5.8V

Number of Outputs: 4

Output Voltage: Multiple

Operating Temperature Range: -40°C to 85°C

Quality and Safety Features

Built-in thermal shutdown

Under-voltage lockout (UVLO)

Over-current protection (OCP)

Compatibility

Suitable for a variety of TFT LCD applications

TSSOP packaging compatible with automated surface mount technology

Application Areas

Notebook computers

Monitor displays

Portable multimedia devices

Product Lifecycle

Status: Active

Not nearing discontinuation with ongoing manufacturer support

Several Key Reasons to Choose This Product

Trustworthy manufacturer with a reputation for quality products

Versatile power supply solution for LCD applications

Reliable performance in extreme temperature conditions

Seamless integration into existing product designs

Strong track record of usage in consumer electronics

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS65100PWP

Product Attribute TPS65100PWP TPS650941A0RSKR TPS65105RGER TPS650944A0RSKT
Part Number TPS65100PWP TPS650941A0RSKR TPS65105RGER TPS650944A0RSKT
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Supplier Device Package 24-HTSSOP 64-VQFN (8x8) 24-VQFN (4x4) 64-VQFN (8x8)
Package Tube Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Number of Outputs 4 12 4 12
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Package / Case 24-PowerTSSOP (0.173", 4.40mm Width) 64-VFQFN Exposed Pad 24-VFQFN Exposed Pad 64-VFQFN Exposed Pad
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Series - D-CAP2™ - D-CAP2™
Voltage - Output Multiple Multiple Multiple Multiple
Base Product Number TPS65100 TPS650941 TPS65105 TPS650944
Applications Controller, TFT LCD Controller/Converter, Mobile PCs Controller, TFT LCD Controller/Converter, Mobile PCs
Voltage - Input 2.7V ~ 5.8V 5.6V ~ 21V 2.7V ~ 5.8V 5.6V ~ 21V

TPS65100PWP Datasheet PDF

Download TPS65100PWP pdf datasheets and Texas Instruments documentation for TPS65100PWP - Texas Instruments.

PCN Design/Specification
Design 22/Feb/2022.pdf
HTML Datasheet
TPS65100/01/05.pdf
