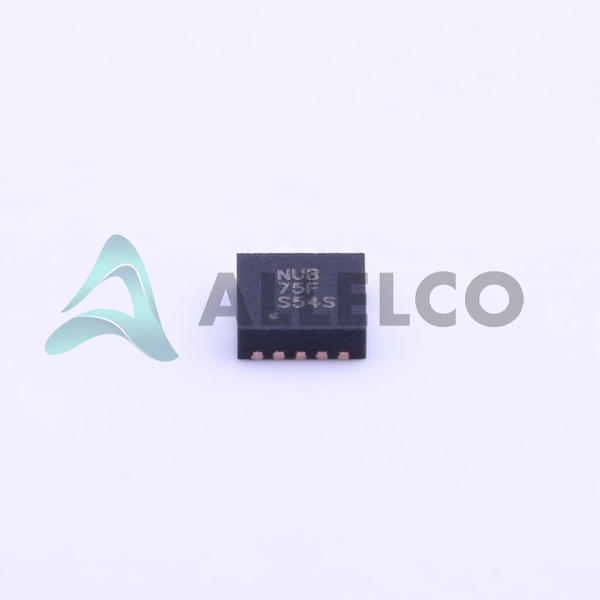

TPS63700DRCR - Texas Instruments

Manufacturer Part Number

TPS63700DRCR

Manufacturer

Texas Instruments

Introduction

The TPS63700DRCR is a flexible DC DC switching regulator specialized for power management, offering a buck-boost topology to accommodate varying voltage requirements.

Product Features and Performance

Buck-Boost topology allows both step-up and step-down voltage regulation

Adjustable output type with a range from -2V to -15V

Supports input voltage from 2.7V to 5.5V

Maximum output current of 360mA

High frequency switching at 1.38MHz

Operates efficiently at a temperature range of -40°C to 85°C

Surface mount, 10-VFDFN exposed pad package for compact integration

Product Advantages

Flexible voltage management suitable for negative output applications

High frequency operation for improved power efficiency

Compact size suitable for space-constrained applications

Key Technical Parameters

Input Voltage: 2.7V to 5.5V

Output Voltage: -2V to -15V

Output Current: 360mA

Switching Frequency: 1.38MHz

Operating Temperature: -40°C to 85°C

Quality and Safety Features

Operates reliably within industrial temperature ranges

Designed for robust performance in varied electronic applications

Compatibility

Compatible with a wide range of devices requiring adjustable negative voltage output

Application Areas

Ideal for battery-powered devices, portable electronics, and other applications requiring efficient voltage inversion

Product Lifecycle

Currently in active production with no indicated discontinuation

Ongoing support and availability of replacements or upgrades

Several Key Reasons to Choose This Product

High efficiency in voltage management across both higher and lower voltages than input

Suitable for a diverse range of applications due to its compact and versatile nature

Reliable performance under wide temperature and voltage ranges

Enhanced durability and longevity in harsh environments
