HomeProductsIntegrated Circuits (ICs)PMIC - Voltage Regulators - DC DC Switching RegulatorsTPS62913RPUR

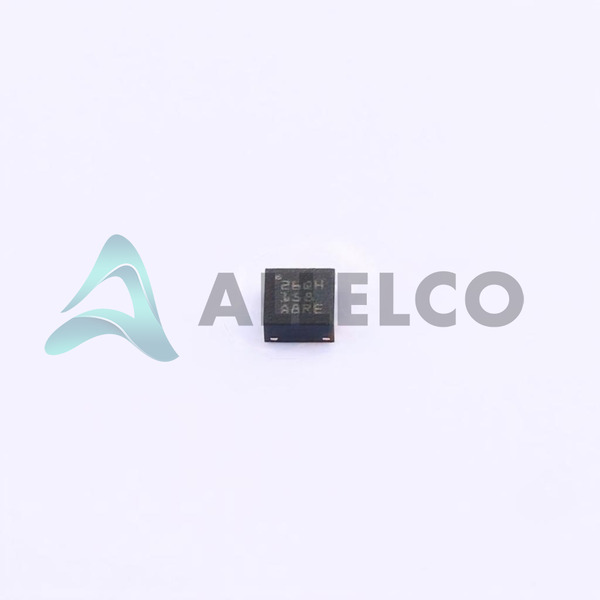

TPS62913RPUR Image
Image may be representation.
See specifications for product details.
EXPRESS OPTION
Payment method

TPS62913RPUR - Texas Instruments

Manufacturer Part Number
TPS62913RPUR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS62913RPUR
ECAD Model
Parts Description
17-VIN, 3-A LOW NOISE AND LOW RI
Detailed Description
Package
10-VFQFN
Data sheet
TPS62913RPUR.pdf
Our certification
In stock: 27222
  • Unit Price: $3.24
  • Subtotal: $0.00

Want a better price?
Please Add to Cart, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $3.24 $3.24
10+ $2.908 $29.08
25+ $2.75 $68.75
100+ $2.383 $238.30
250+ $2.261 $565.25
500+ $2.029 $1,014.50
1000+ $1.833 $1,833.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS62913RPUR Tech Specifications
Texas Instruments - TPS62913RPUR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS62913RPUR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Output (Min/Fixed) 0.8V
Voltage - Output (Max) 5.5V
Voltage - Input (Min) 3V
Voltage - Input (Max) 17V
Topology Buck
Synchronous Rectifier Yes
Supplier Device Package 10-VQFN-HR (2x2)
Series -
Package / Case 10-VFQFN
Product Attribute Attribute Value
Package Tape & Reel (TR)
Output Type Adjustable
Output Configuration Positive
Operating Temperature -40°C ~ 150°C (TJ)
Number of Outputs 1
Mounting Type Surface Mount
Function Step-Down
Frequency - Switching 1MHz, 2.2MHz
Current - Output 3A

Parts Introduction

Manufacturer Part Number

TPS62913RPUR

Manufacturer

Texas Instruments

Introduction

The TPS62913RPUR from Texas Instruments is a highly efficient step-down voltage regulator within the Power Management IC (PMIC) category, specifically a DC DC Switching Regulator, for a wide array of electronic applications.

Product Features and Performance

Efficient step-down voltage conversion

Adjustable output voltage range from 0.8V to 5.5V

Capable of supplying up to 3A output current

Switching frequencies available are 1MHz and 2.2MHz for design flexibility

Features synchronous rectification for improved efficiency

Supports a broad input voltage range of 3V to 17V

Designed for high-temperature performance with an operating range of -40°C to 150°C

Product Advantages

High efficiency to minimize energy loss

Supports a wide range of input voltages catering to various applications

Multiple switching frequencies facilitate the optimization of inductor size and efficiency

High-reliability performance with a robust operating temperature range

Compact 10-VFQFN package for space-constrained applications

Key Technical Parameters

Single output with adjustable voltage

3A maximum output current

Input voltage range from 3V to 17V

Output voltage range from 0.8V to 5.5V

High switching frequency options of 1MHz and 2.2MHz

Surface mount package ideal for compact PCB designs

Quality and Safety Features

Operating temperature range is suitable for harsh environments

State-of-the-art packaging for enhanced thermal performance and reliability

In-built synchronous rectifier for reduced thermal load

Compatibility

Optimized for surface mount technology

10-VQFN-HR (2x2) package compatible with standard PCB technology

Application Areas

Telecommunications

Computing systems

Networking equipment

Industrial electronics

Portable devices

Consumer electronics

Product Lifecycle

Product Status: Active

Not reported as nearing discontinuation

Availability of replacements or upgrades not specified

Several Key Reasons to Choose This Product

High system efficiency conserves power and extends battery life in portable applications

Wide input voltage compatibility enables use in various system configurations

Adjustable output voltage allows for flexible design and use in multiple applications

Space-saving 10-VFQFN package is ideal for compact electronic devices

Supports high-temperature operation, perfect for industrial and automotive environments

High switching frequencies reduce the size of external components, minimizing the overall footprint

Built by Texas Instruments, a reputable manufacturer in the semiconductor industry

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS62913RPUR

Product Attribute TPS62913RPUR TPS6286920CRQYR TPS629211QDRLRQ1 TPS62932DRLR
Part Number TPS62913RPUR TPS6286920CRQYR TPS629211QDRLRQ1 TPS62932DRLR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Supplier Device Package 10-VQFN-HR (2x2) 9-VQFN-HR (1.5x2.5) SOT-583 SOT-583
Voltage - Input (Min) 3V 2.4V 3V 3.8V
Function Step-Down Step-Down Step-Down Step-Down
Topology Buck Buck Buck Buck
Output Type Adjustable Adjustable Adjustable Adjustable
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Voltage - Input (Max) 17V 5.5V 10V 30V
Output Configuration Positive Positive Positive Positive
Number of Outputs 1 1 1 1
Voltage - Output (Max) 5.5V 3.35V 5.5V 22V
Series - - - -
Voltage - Output (Min/Fixed) 0.8V 0.8V 0.4V 0.8V
Current - Output 3A 6A 1A 2A
Package / Case 10-VFQFN 9-VFQFN SOT-583 SOT-583
Operating Temperature -40°C ~ 150°C (TJ) -40°C ~ 125°C (TJ) -40°C ~ 150°C (TJ) -40°C ~ 150°C (TJ)
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Frequency - Switching 1MHz, 2.2MHz 2.4MHz 1MHz, 2.5MHz 200kHz ~ 2.2MHz
Synchronous Rectifier Yes Yes Yes Yes
