Manufacturer Part Number

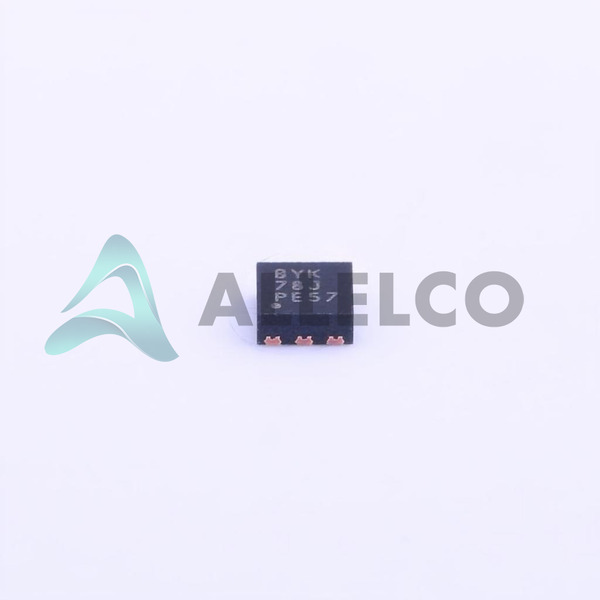

TPS62260DRVR
Manufacturer
Texas Instruments
Introduction
The TPS62260DRVR is a highly efficient step-down converter with adjustable output, catering to a wide range of input voltages.
Product Features and Performance
Step-Down Buck Regulator
Adjustable Output Voltage
25MHz High-Frequency Switching
Synchronous Rectification for Improved Efficiency
600mA Output Current Capability
Supports Input Voltage Range from 2V to 6V
Operates over an Output Voltage Range of 0.6V to 6V
Surface Mount Package for Optimal Space Utilization
Product Advantages
High Power Efficiency
Compact 6-WDFN Exposed Pad Design
Low Dropout Operation
High Reliability and Low EMI
Fast Transient Response
Thermal Shut-down and Over-current Protection
Key Technical Parameters
Minimum Input Voltage: 2V
Maximum Input Voltage: 6V
Minimum Output Voltage: 0.6V
Maximum Output Voltage: 6V
Output Current: 600mA
Switching Frequency: 2.25MHz
Temperature Range: -40°C to 85°C
Quality and Safety Features
Built-in Over-temperature Protection
Short-circuit Protection
Under Voltage Lockout (UVLO)
Compatibility
Compatible with a Variety of Capacitive Loads
Application Areas
Portable Electronics
Wireless Peripherals
Power Supply Modules
Battery-Powered Devices
Product Lifecycle
Active Product Status
Not Nearing Discontinuation
Replacement and Upgrade Options Available
Several Key Reasons to Choose This Product
High-efficiency buck conversion reduces power loss
Versatile input and output parameters fit numerous applications
Compact design ideal for space-constrained applications
Texas Instruments' reputation for quality and robustness
Extensive protection features ensure long-term reliability
Ease of integration into existing designs due to standard packaging
