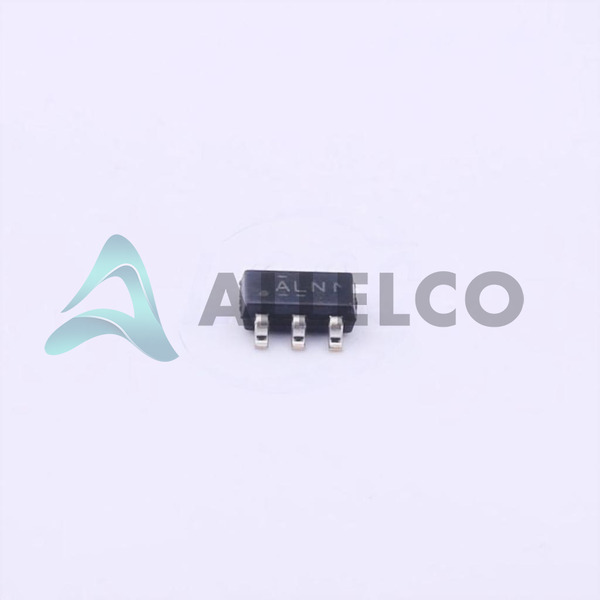

TPS62220DDCR Image
TPS62220DDCR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

TPS62220DDCR - Texas Instruments

Manufacturer Part Number
TPS62220DDCR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS62220DDCR
ECAD Model
Parts Description
IC REG BUCK ADJ 400MA SOT23-5
Detailed Description
Package
SOT-23-5 Thin, TSOT-23-5
Data sheet
TPS62228DDCT.pdf
TPS62228DDCT.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 58280

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

TPS62220DDCR Tech Specifications
Texas Instruments - TPS62220DDCR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS62220DDCR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Output (Min/Fixed) 0.7V
Voltage - Output (Max) 6V
Voltage - Input (Min) 2.5V
Voltage - Input (Max) 6V
Topology Buck
Synchronous Rectifier Yes
Supplier Device Package SOT-23-THIN
Series -
Package / Case SOT-23-5 Thin, TSOT-23-5
Product Attribute Attribute Value
Package Tape & Reel (TR)
Output Type Adjustable
Output Configuration Positive
Operating Temperature -40°C ~ 85°C (TA)
Number of Outputs 1
Mounting Type Surface Mount
Function Step-Down
Frequency - Switching 1.25MHz
Current - Output 400mA
Base Product Number TPS62220

Parts Introduction

Manufacturer Part Number

TPS62220DDCR

Manufacturer

Texas Instruments

Introduction

The TPS62220DDCR is a high-efficiency synchronous step-down DC-DC converter.

Product Features and Performance

Synchronous step-down (buck) regulator topology

Adjustable output voltage

High efficiency for extended battery life

25MHz switching frequency for small external components

Automatic transition to Power Save Mode at light loads

Stable with low ESR ceramic output capacitors

Product Advantages

High power efficiency under various load conditions

Compact SOT-23 package ideal for space-constrained applications

Low dropout operation for improved performance at low input voltages

Low quiescent current extends battery life in portable devices

Supports a wide range of input and output voltages

High-frequency operation allows the use of smaller passive components

Key Technical Parameters

Voltage - Input (Min) 2.5V

Voltage - Input (Max) 6V

Voltage - Output (Min/Fixed) 0.7V

Voltage - Output (Max) 6V

Current - Output 400mA

Frequency - Switching 1.25MHz

Synchronous Rectifier Yes

Operating Temperature -40°C to 85°C

Quality and Safety Features

Overtemperature and overcurrent protection

Cycle-by-cycle current limit

Thermal shutdown protection

Compatibility

Compatible with a variety of loads and applications due to adjustable output voltage and high switching frequency

Application Areas

Portable electronics

Battery-powered devices

Wireless and RF systems

Microprocessor/ FPGA power supplies

Product Lifecycle

Active status indicates ongoing manufacture and availability

Not indicated as nearing discontinuation

Several Key Reasons to Choose This Product

Efficient power conversion for extended battery life

Compact size suitable for portable applications

Flexible input and output voltage ranges accommodate a variety of power sources and loads

Reduced external component size due to high switching frequency

Reliable performance with built-in protection features

Established manufacturer with a reputation for quality and support

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS62220DDCR

Product Attribute TPS62220DDCR TPS62221DDCR TPS62207DBVR TPS62207DBVT
Part Number TPS62220DDCR TPS62221DDCR TPS62207DBVR TPS62207DBVT
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Supplier Device Package SOT-23-THIN SOT-23-THIN SOT-23-5 SOT-23-5
Voltage - Input (Max) 6V 6V 6V 6V
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Voltage - Output (Max) 6V - - -
Frequency - Switching 1.25MHz 1.25MHz 1MHz 1MHz
Synchronous Rectifier Yes Yes Yes Yes
Base Product Number TPS62220 TPS62221 TPS62207 TPS62207
Current - Output 400mA 400mA 300mA 300mA
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA)
Voltage - Input (Min) 2.5V 2.5V 2.5V 2.5V
Number of Outputs 1 1 1 1
Output Configuration Positive Positive Positive Positive
Series - - - -
Topology Buck Buck Buck Buck
Function Step-Down Step-Down Step-Down Step-Down
Package / Case SOT-23-5 Thin, TSOT-23-5 SOT-23-5 Thin, TSOT-23-5 SC-74A, SOT-753 SC-74A, SOT-753
Output Type Adjustable Fixed Fixed Fixed
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Voltage - Output (Min/Fixed) 0.7V 1.5V 1.2V 1.2V

TPS62220DDCR Datasheet PDF

Download TPS62220DDCR pdf datasheets and Texas Instruments documentation for TPS62220DDCR - Texas Instruments.

Datasheets
TPS62228DDCT.pdf
PCN Assembly/Origin
Assembly Materials 11/Oct/2021.pdf
HTML Datasheet
TPS62228DDCT.pdf
