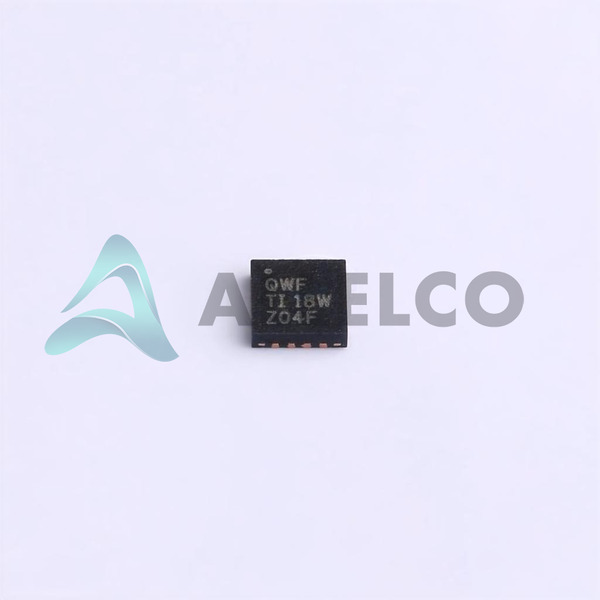

TPS61181ARTER - Texas Instruments

Manufacturer Part Number

TPS61181ARTER

Manufacturer

Texas Instruments

Introduction

Integrated circuit (IC) designed for LED driver applications

Product Features and Performance

6 independent LED driver channels

Up to 30mA output current per channel

Wide input voltage range of 4.5V to 24V

High output voltage up to 38V

1MHz switching frequency

PWM dimming control

Thermal shutdown and overcurrent protection

Small 16-WQFN (3x3) package

Product Advantages

Efficient and compact solution for LED backlighting

Flexible configuration with independent LED driver channels

Wide input voltage range for versatile applications

Robust protection features for reliable operation

Key Technical Parameters

Manufacturer Part Number: TPS61181ARTER

Package: 16-WQFN (3x3)

Input Voltage Range: 4.5V to 24V

Output Voltage: Up to 38V

Output Current per Channel: Up to 30mA

Switching Frequency: 1MHz

Dimming Control: PWM

Quality and Safety Features

RoHS3 compliant

Thermal shutdown and overcurrent protection

Compatibility

Suitable for LED backlight applications in various electronic devices

Application Areas

LED backlighting for displays, LCD panels, and other lighting systems

Product Lifecycle

Current production part, no discontinuation plans

Several Key Reasons to Choose This Product

Efficient and compact LED driver solution

Flexible configuration with independent LED driver channels

Wide input voltage range for versatile applications

Robust protection features for reliable operation

Suitable for a wide range of LED backlight applications
