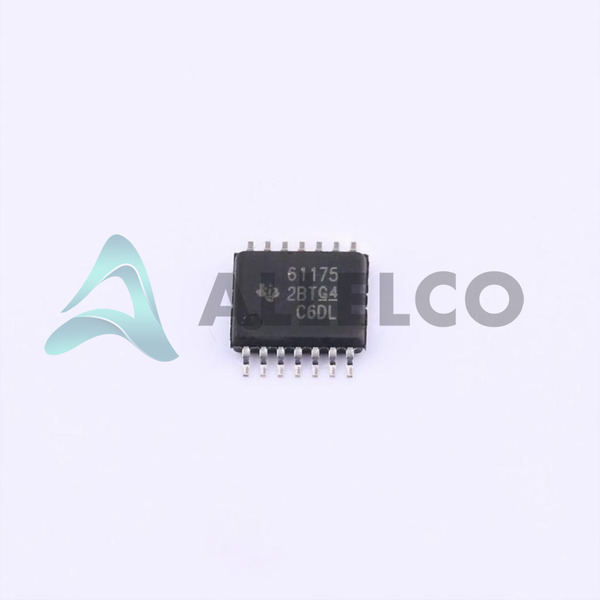

TPS61175PWP - Texas Instruments

Manufacturer Part Number

TPS61175PWP

Manufacturer

Texas Instruments

Introduction

The TPS61175PWP is a high-voltage boost converter from Texas Instruments, designed for applications requiring a step-up or step-up/step-down voltage conversion. It supports a wide input voltage range and adjustable output voltage.

Product Features and Performance

Configurable as either boost, flyback, or SEPIC topology

Adjustable output voltage ranging from 2.9V to 38V

Capable of delivering up to 3A switch current

Frequency switching capability between 200 kHz and 2.2 MHz

Operates over a wide temperature range from -40°C to 85°C

Surface mount type with 14-PowerTSSOP package

Product Advantages

Versatile with multiple topology configurations (Boost, Flyback, SEPIC)

High maximum output voltage of 38V

Wide input voltage range from 2.9V to 18V

High-frequency switching allows for smaller passive components

Key Technical Parameters

Voltage Input (Min): 2.9V

Voltage Input (Max): 18V

Voltage Output (Min/Fixed): 2.9V

Voltage Output (Max): 38V

Current Output: 3A (Switch)

Frequency Switching: 200kHz ~ 2.2MHz

Quality and Safety Features

Operates effectively within an extended temperature range of -40°C ~ 85°C

Compatibility

Suitable for a variety of applications requiring adjustable output voltage and high output current.

Application Areas

Power supply for sensors, cameras, RF circuits, and microprocessors

Portable electronics

Battery-powered equipment

Industrial and telecommunications equipment

Product Lifecycle

Current product status is active

No indications of nearing discontinuation; replacements or upgrades are likely available due to ongoing support

Several Key Reasons to Choose This Product

Highly flexible with adjustable voltage outputs and support for multiple topologies

Supports a wide input range catering to various power supply levels

High output capability suitable for demanding applications

Thermal and switching frequency options to optimize performance

Reliable and robust product supported by Texas Instruments, suitable for long-term and diverse applications
