Manufacturer Part Number

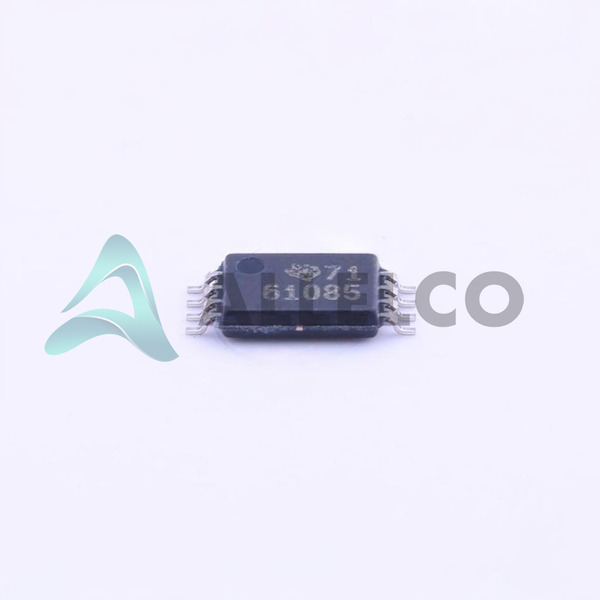

TPS61085TPWR
Manufacturer
Texas Instruments
Introduction
High-Power Adjustable Step-Up Converter for Portable Systems
Product Features and Performance
Supports 2.3V to 6V Input Voltage Range
Adjustable Output Voltage from 2.8V to 18.5V
2A Current Output Capacity (Switch)
Selectable Switching Frequency at 650kHz or 1.2MHz
No Synchronous Rectifier
Thermal Overload Protection
Under Voltage Lockout (UVLO)
Product Advantages
High Conversion Efficiency for Battery-Powered Devices
Wide Range of Input Voltage Suitable for Single-Cell to Multi-Cell Batteries
Adjustable Output Voltage Enables Versatility Across Different Applications
High Switching Frequency Reduces External Components Size
Built-In Protection Features Ensure Reliable Operation
Key Technical Parameters
Voltage - Input (Min): 2.3V
Voltage - Input (Max): 6V
Voltage - Output (Min/Fixed): 2.8V
Voltage - Output (Max): 18.5V
Current - Output (Switch): 2A
Frequency - Switching: 650kHz or 1.2MHz
Operating Temperature: -40°C to 85°C (TA)
Quality and Safety Features
Thermal Shutdown
Over Current Protection
UVLO
Compatibility
Tape & Reel Packaging for Automated Assembly
8-TSSOP Surface Mount Package for PCB Footprint Efficiency
Application Areas
Portable Electronics
Battery-Powered Equipment
Wireless Networking Devices
Handheld Devices
Product Lifecycle
Active Status
Consistent Supply and Support Expected
Reasons to Choose This Product
Efficient Power Management for Portable Applications
Flexibility in Design with Adjustable Voltage Features
Robust Protection Mechanisms Enhance Product Longevity
High Switching Frequency Allows for Smaller Passive Components
Reliable Performance from a Reputable Manufacturer (Texas Instruments)
Support and Documentation Available from Texas Instruments
