TPS61024DRCR - Texas Instruments

Manufacturer Part Number

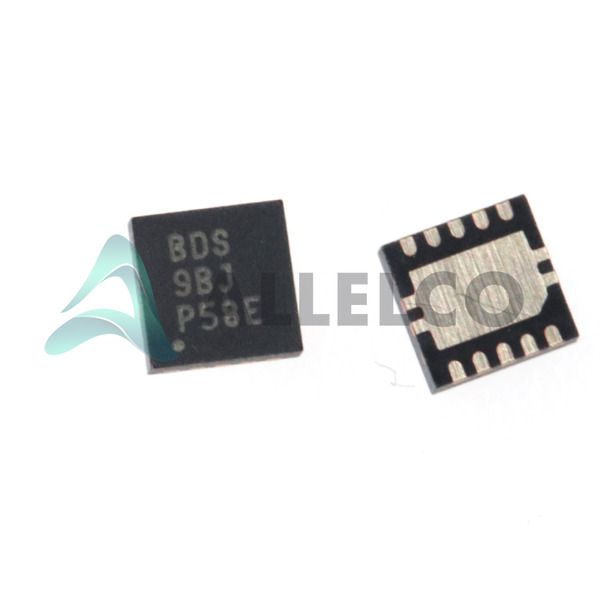

TPS61024DRCR

Manufacturer

Texas Instruments

Introduction

The TPS61024DRCR is a high-efficiency, fixed output, step-up DC-DC switching regulator designed for powering portable devices from a low voltage power source.

Product Features and Performance

Step-Up function

Fixed output configuration

Boost topology

Output type: Fixed 3V

High switching frequency of 600kHz

Synchronous rectification for improved efficiency

Surface mount package simplifies PCB design

Designed for low input voltage from 0.9V to 6.5V

Capable of delivering 1.5A switch current

Product Advantages

High efficiency reduces thermal load

Compact 10-VSON (3x3) package saves space on PCB

Capable of operating over a wide temperature range from -40°C to 85°C

Key Technical Parameters

Voltage Input (Min): 0.9V

Voltage Input (Max): 6.5V

Voltage Output (Min/Fixed): 3V

Current Output: 1.5A (Switch)

Frequency Switching: 600kHz

Operating Temperature: -40°C ~ 85°C

Quality and Safety Features

Built-in overcurrent protection

Thermal shutdown feature safeguards against overheating

Compatibility

Compatible with a wide range of low voltage power sources

Application Areas

Portable electronics

Battery-powered devices

Low power handheld devices

Product Lifecycle

Product status: Active

Not nearing discontinuation with stable supply available

Several Key Reasons to Choose This Product

High efficiency maximizes battery life

Supports a wide input voltage range suitable for various applications

High output current capacity supports demanding applications

Compact and robust design for portable applications

Comprehensive protection features ensure long product reliability and safety
