TPS60403DBVR - Texas Instruments

Manufacturer Part Number

TPS60403DBVR

Manufacturer

Texas Instruments

Introduction

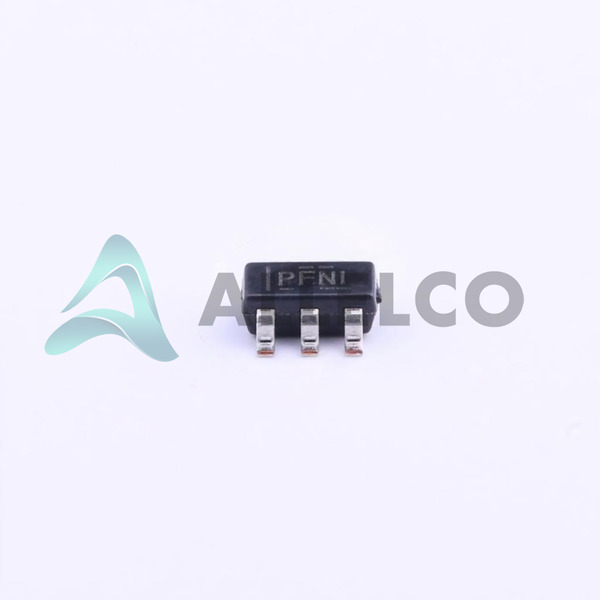

The TPS60403DBVR by Texas Instruments is a charge pump DC-DC switching regulator provided in a compact SOT-23-5 package. It effectively manages power by converting input voltage into a ratiometric output voltage, compatible for both positive and negative outputs.

Product Features and Performance

Charge pump topology

Fixed output type facilitating ratiometric output

Supports either positive or negative output configurations

Operates across a wide input voltage range from 1.8V to 5.25V

Fixed output options include -Vin, 2Vin, Vin/2

60mA output current capacity

Switching frequency at 250 kHz

Product Advantages

Compact SC-74A, SOT-753 package for space-sensitive applications

Flexible voltage input and output options

No synchronous rectifier required, simplifying the design

Key Technical Parameters

Input Voltage (Min): 1.8V

Input Voltage (Max): 5.25V

Output Voltage Options: -Vin, 2Vin, Vin/2

Output Current: 60mA

Switching Frequency: 250kHz

Operating Temperature Range: -40°C to 125°C

Quality and Safety Features

Sturdy surface mount package

Capable of handling temperatures ranging from -40°C to 125°C

Compatibility

Can be integrated into a multitude of electronic circuits due to its flexible input and output voltage ratings and small package size

Application Areas

Mobile devices

Portable electronics

Battery-powered equipment

Small electronic devices requiring a small footprint voltage regulator

Product Lifecycle

Currently active product status

No indication of pending discontinuation

Several Key Reasons to Choose This Product

Reliable performance through Texas Instruments' manufacturing

Versatile input and output capabilities suitable for diverse applications

Compact form factor ideal for dense circuit designs

Excellent performance in extended temperature environments

High-frequency operation allows for smaller external components
