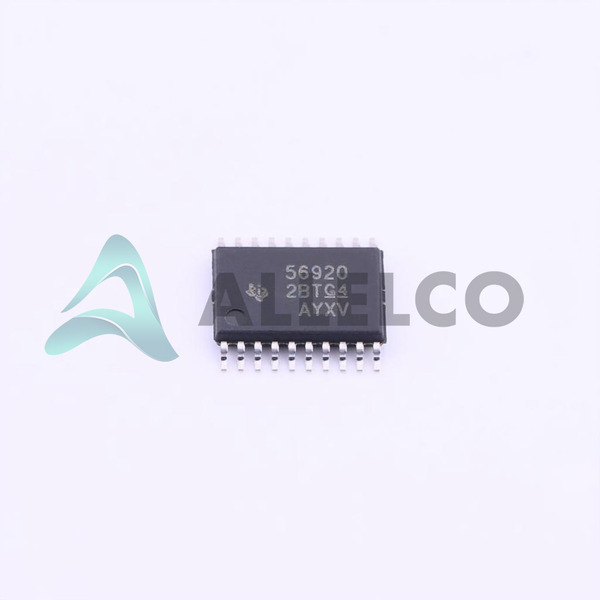

TPS56920PWPR - Texas Instruments

Manufacturer Part Number

TPS56920PWPR

Manufacturer

Texas Instruments

Introduction

The TPS56920PWPR is a high-performance, step-down (buck) regulator from Texas Instruments, designed to meet a wide range of power management requirements.

Product Features and Performance

SWIFT™, D-CAP2™, and Eco-Mode™ technologies for efficient power conversion

Adjustable output voltage for versatile application use

Synchronous rectification for improved efficiency

Supports a wide input voltage range from 4.5V to 17V

Capable of delivering up to 9A of output current

Programmable switching frequency of 500kHz

Product Advantages

High efficiency over a wide load range

Minimal external components required due to integrated circuits

Fast transient response with D-CAP2™ mode

Improved power conservation with Eco-Mode™ at light loads

Key Technical Parameters

Voltage Input (Min): 4.5V

Voltage Input (Max): 17V

Voltage Output (Min/Fixed): 0.6V

Voltage Output (Max): 1.87V

Current Output: 9A

Frequency Switching: 500kHz

Operating Temperature: -40°C ~ 125°C (TJ)

Quality and Safety Features

Built-in thermal shutdown and overcurrent protection

Under-voltage lockout (UVLO) for safe operation

Compatibility

Designed for surface mount applications

Compatible with a wide range of input sources and loads

Application Areas

Computing systems

Networking equipment

Telecommunications

Industrial applications

Portable devices

Product Lifecycle

Product status: Active

Not nearing discontinuation

Availability of replacements or upgrades is maintained

Several Key Reasons to Choose This Product

Versatile application use due to adjustable output voltage

High efficiency, reducing power loss and heat generation

Robust safety features protect against overcurrent and thermal overload

Suitable for a wide range of industrial and consumer applications

Sustainable product choice with long lifecycle and support
