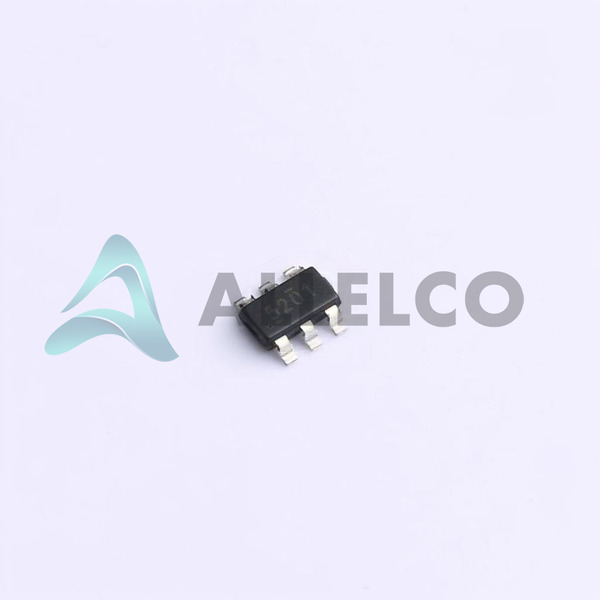

TPS565201DDCT - Texas Instruments

Manufacturer Part Number

TPS565201DDCT

Manufacturer

Texas Instruments

Introduction

The TPS565201DDCT is a highly efficient synchronous step-down DC-DC converter.

Product Features and Performance

D-CAP2™ control for fast transient response

Eco-Mode™ for light-load efficiency

Integrated high-side and low-side MOSFETs

High-efficiency step-down regulator

Frequency synchronization capability

Overcurrent and thermal protection

Power Good (PG) signal available

Wide input voltage range suitable for various applications

Adjustable output voltage for design flexibility

Product Advantages

Reduced external components due to D-CAP2™ integration

Improved efficiency at light loads with Eco-Mode™

Compact SOT-23-6 package saves board space

Stable operation with low ESR output capacitors

Suitable for tight space power supply designs

Key Technical Parameters

Output Config: Positive Adjustable Buck

Number of Outputs: 1

Voltage Input (Min): 4.5V

Voltage Input (Max): 17V

Voltage Output (Min/Fixed): 0.6V

Voltage Output (Max): 7V

Current Output: 5A

Frequency Switching: 500kHz

Synchronous Rectifier: Yes

Operating Temp: -40°C ~ 125°C (TJ)

Quality and Safety Features

Overcurrent protection

Thermal shutdown protection

Cycle-by-cycle current limit

Compatibility

Compatible with low ESR ceramic capacitors

Synchronous Buck converter design for use with various input sources

Application Areas

Consumer Electronics

Networking Equipment

Industrial Systems

Computing Devices

Product Lifecycle

Currently Active

Long-term support expected

Potential for future replacement or upgrade available

Several Key Reasons to Choose This Product

High efficiency over a wide load range for energy saving

Small, compact design enables use in space-constrained applications

Fast transient response ideal for digital loads

The versatility of input and output voltage ranges for varied applications

Texas Instruments' reputation for robust quality and support
