Manufacturer Part Number

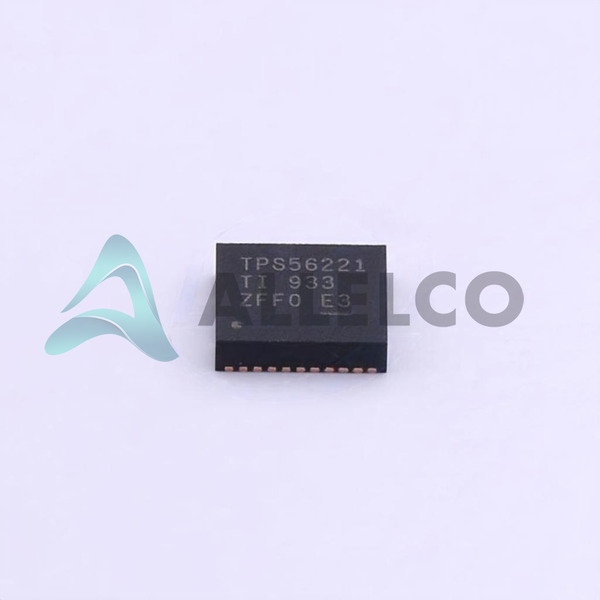

TPS56221DQPR
Manufacturer
Texas Instruments
Introduction
The TPS56221DQPR is a high-performance, step-down switching regulator catered to power management applications.
Product Features and Performance
Step-Down (Buck) topology
Adjustable output voltage
Single output channel
Supports synchronous rectification
Wide input voltage range from 4.5V to 14V
Adjustable output voltage from 0.6V to 13.02V
High current output capacity of 25A
Selectable switching frequency options: 300kHz, 500kHz, 950kHz
High thermal performance operating up to 125°C
Product Advantages
High efficiency due to synchronous rectification
Compact 22-PowerLFDFN package
Low minimum output voltage allowing for versatile applications
Capable of driving high current loads
Key Technical Parameters
Input Voltage Range: 4.5V to 14V
Output Voltage Range: 0.6V to 13.02V
Output Current: 25A
Switching Frequency: 300kHz, 500kHz, 950kHz
Operating Temperature Range: -40°C to 125°C
Quality and Safety Features
Extended operating temperature range suitable for industrial applications
Surface mount technology for reliable PCB mounting
Compatibility
Compatible with various input sources ranging between 4.5V and 14V
Adjustable output catering to a wide array of voltage requirements for different devices
Application Areas
Consumer electronics
Power supplies for communication equipment
Networking hardware
Industrial systems
Product Lifecycle
Active product status, not nearing discontinuation
Replacements and upgrades may be available, refer to manufacturer for more details
Several Key Reasons to Choose This Product
Efficient power conversion reducing energy loss
Adequate for high current applications up to 25A
Multiple switching frequencies provide design flexibility
Operational in harsh environments with a temperature range up to 125°C
The compact package size saves board space
Reliable performance from a trusted manufacturer, Texas Instruments
Availability in Tape & Reel packaging for automated manufacturing processes
