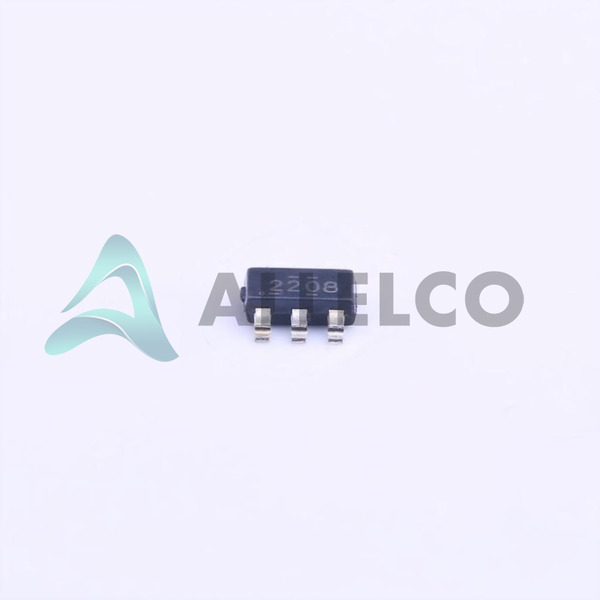

TPS562208DDCR - Texas Instruments

Manufacturer Part Number

TPS562208DDCR

Manufacturer

Texas Instruments

Introduction

The TPS562208DDCR is a highly efficient synchronous step-down DC-DC converter.

Product Features and Performance

Step-Down (Buck) topology

Adjustable output voltage

Single output channel

Integrated synchronous rectifier for high efficiency

D-CAP2™ control mode for fast transient response

Eco-Mode™ for light load efficiency

Supports a wide input voltage range from 4.5V to 17V

Adjustable output voltage range from 0.768V to 7V

Capable of delivering up to 2A of output current

Switching frequency of 580kHz

High thermal performance with an operating temperature range from -40°C to 125°C

Product Advantages

Efficient power conversion reducing energy loss

Fast transient response ideal for modern microprocessors

Continuous load current up to 2A suitable for various applications

Low dropout operation

Eco-Mode™ enhances light load efficiency

Compact SOT-23-6 package

Suitable for automated assembly processes (available in tape and reel packaging)

Key Technical Parameters

Input Voltage (Min): 4.5V

Input Voltage (Max): 17V

Output Voltage (Min/Fixed): 0.768V

Output Voltage (Max): 7V

Current - Output: 2A

Frequency - Switching: 580kHz

Synchronous Rectifier: Yes

Quality and Safety Features

Built-in thermal shutdown

Under-voltage lockout (UVLO)

Over-current protection (OCP)

Short-circuit protection (SCP)

Safety compliant for industrial grade requirements

Compatibility

Compatible with surface mount technology (SMT)

Can be used in various electronic circuits due to its adjustable voltage output

Application Areas

Consumer Electronics

Computing Systems

Networking Devices

Industrial Electronics

Portable and Battery-Powered Equipment

Telecommunication Infrastructure

Product Lifecycle

Currently active and in production

No reported discontinuation of the product

Availability of replacements or upgrades should be confirmed with Texas Instruments

Key Reasons to Choose This Product

High integration level with built-in MOSFETs

Minimized external component count enabling compact design

High efficiency reduces system power loss and improves thermal performance

Flexible design suitable for a wide range of input voltages and output loads

Reliable operation in extreme temperatures from -40°C to 125°C

Ease of use through simple external circuitry and pin-out

Industry-proven reliability from Texas Instruments

An optimal choice for high-volume manufacturing due to tape and reel packaging
