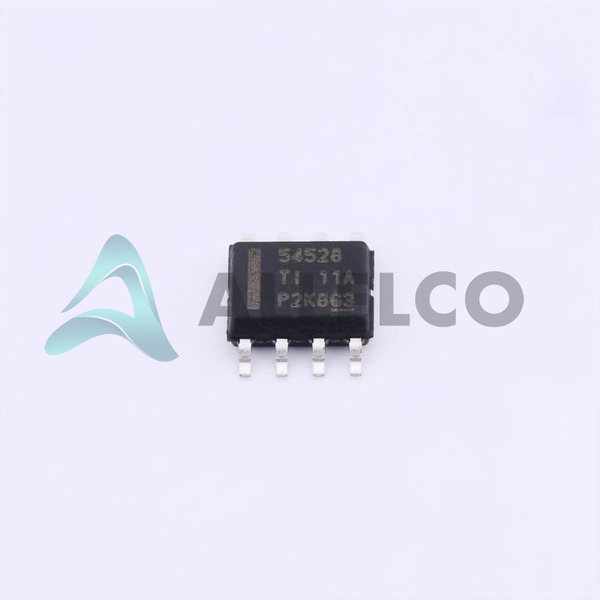

TPS54528DDAR Image
TPS54528DDAR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

TPS54528DDAR - Texas Instruments

Manufacturer Part Number
TPS54528DDAR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS54528DDAR
ECAD Model
Parts Description
IC REG BUCK ADJUSTABLE 5A 8SOPWR
Detailed Description
Package
8-PowerSOIC (0.154", 3.90mm Width)
Data sheet
TPS54528.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 42290

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

TPS54528DDAR Tech Specifications
Texas Instruments - TPS54528DDAR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS54528DDAR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Output (Min/Fixed) 0.76V
Voltage - Output (Max) 6V
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 18V
Topology Buck
Synchronous Rectifier Yes
Supplier Device Package 8-SO PowerPad
Series D-CAP2™, Eco-Mode™
Package / Case 8-PowerSOIC (0.154", 3.90mm Width)
Product Attribute Attribute Value
Package Tape & Reel (TR)
Output Type Adjustable
Output Configuration Positive
Operating Temperature -40°C ~ 85°C (TA)
Number of Outputs 1
Mounting Type Surface Mount
Function Step-Down
Frequency - Switching 650kHz
Current - Output 5A
Base Product Number TPS54528

Parts Introduction

Manufacturer Part Number

TPS54528DDAR

Manufacturer

Texas Instruments

Introduction

High-efficiency synchronous step-down regulator

Product Features and Performance

Efficient power conversion with D-CAP2™ control

Eco-Mode™ for light-load efficiency

5A continuous output current

Supports pre-biased startup

Adjustable soft start

Under-voltage lockout

Thermal shutdown protection

Overcurrent protection

Product Advantages

High efficiency for reduced power loss

Fast transient response with D-CAP2™ architecture

Reduced component count with built-in MOSFETs

Eco-Mode™ for increased efficiency at light loads

Thermal and overcurrent protection for safety and reliability

Voltage tracking capability for sequencing

Precision enable threshold for system power sequencing

Key Technical Parameters

5V to 18V input voltage range

76V to 6V adjustable output voltage range

5A output current capacity

650kHz switching frequency

Synchronous rectification topography

Negative to 40°C to 85°C operating temperature range

Quality and Safety Features

Thermal shutdown

Overcurrent protection

Cycle-by-cycle current limit

Pre-biased start-up

Compatibility

Surface mount compatible

8-PowerSOIC package compatible with 8-SO PowerPad footprint

Application Areas

Point of Load power supplies

Enterprise networking equipment

Telecommunications infrastructure

Consumer electronics

Computing systems

Industrial controls

Product Lifecycle

Active product status

Supported by Texas Instruments with potential future upgrades

Several Key Reasons to Choose This Product

Excellent efficiency for thermal management and power saving

Advanced control architecture for precise regulation and fast transient response

Highly integrated solution reduces board space and bill of materials

Robust protection features for enhanced system reliability

Flexible operation with a wide range of input and output voltages

Proven manufacturer with strong support and design resources

Excellent choice for both new designs and existing systems due to product longevity and active status
