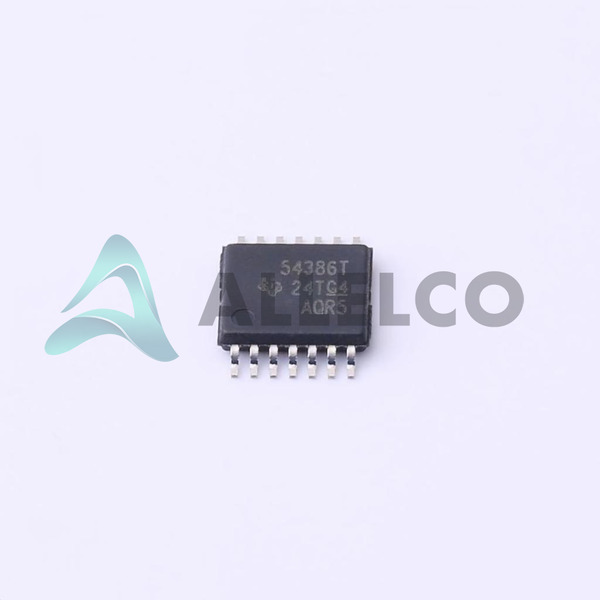

TPS54386TPWPRQ1 - Texas Instruments

Manufacturer Part Number

TPS54386TPWPRQ1

Manufacturer

Texas Instruments

Introduction

Automotive Grade Step-Down DC DC Converter

Product Features and Performance

Dual Output Adjustable Buck Regulator

Input Voltage Range from 4.5V to 28V

Output Voltage Range from 0.8V to 25.2V

Output Current up to 3A

Switching Frequency of 630kHz

Operating Temperature Range from -40°C to 125°C

Product Advantages

High Flexibility with Adjustable Output

High Efficiency due to Step-Down Topology

Designed for Automotive Applications

Compliant with AEC-Q100 Standards

Key Technical Parameters

Positive Output Configuration

Buck Topology

Adjustable Output Type

Two Outputs Supported

Surface Mount Mounting Type

14-PowerTSSOP Package

Quality and Safety Features

AEC-Q100 Qualified

Reliable Operation in Harsh Temperature Environments

Compatibility

Compatible with Other Devices in 14-PowerTSSOP Package

Works with Broad Range of Input Voltages

Application Areas

Automotive Electronics

Power Supply Units

Consumer Electronics

Product Lifecycle

Active Status

Not Indicated as Nearing Discontinuation

Several Key Reasons to Choose This Product

Wide Input Voltage Range Suitable for Various Applications

Dual Output for Multiple Supply Needs

Automotive Grade Quality for Enhanced Durability

Capable of Driving 3A Loads with High Efficiency

Surface Mount Package for Compact Circuit Design
