Manufacturer Part Number

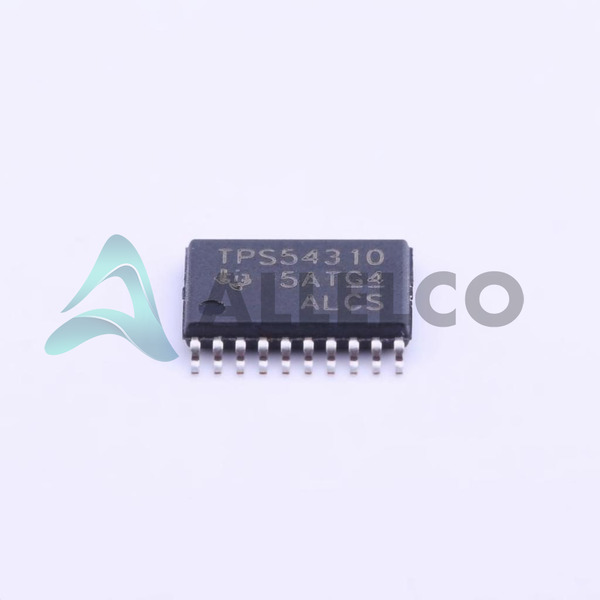

TPS54310PWP
Manufacturer
Texas Instruments
Introduction
The TPS54310PWP is a step-down (buck) switching regulator from Texas Instruments, capable of delivering a 3A output current. It is primarily used for power management applications.
Product Features and Performance
Adjustable output from 0.891V to 3.3V
Capable of handling input voltage from 3V to 6V
Supports synchronous rectification for improved efficiency
Operates over a switching frequency range of 350kHz to 550kHz
Designed for operations in a temperature range from -40°C to 125°C
Implemented in a 20-Power TSSOP package
Product Advantages
High efficiency switching due to synchronous rectifier integration
Adjustable output provides flexibility in voltage supply
Can handle a robust temperature range making it suitable for industrial applications
Key Technical Parameters
Voltage Input (Min) : 3V
Voltage Input (Max): 6V
Voltage Output (Min/Fixed): 0.891V
Voltage Output (Max): 3.3V
Current Output: 3A
Switching Frequency: 350kHz to 550kHz
Operating Temperature: -40°C to 125°C
Quality and Safety Features
Synchronous rectification supports overall system reliability and efficiency
Built within robust thermal and operational limits
Compatibility
Compatible with surface mount technology ensuring easier integration into PCB designs
Application Areas
Computing systems
Communication equipment
Industrial systems
Product Lifecycle
Status: Obsolete
Potential for replacements or upgrades may be available, consult the manufacturer for modern equivalents
Several Key Reasons to Choose This Product
High efficiency and energy saving capabilities
Flexible output voltage range tailored for various electronic applications
Robust performance in extreme temperatures
Compact package suitable for space-constrained applications
Trusted manufacturer with a reputation for reliable and durable products
