TPS54294PWPR - Texas Instruments

Manufacturer Part Number

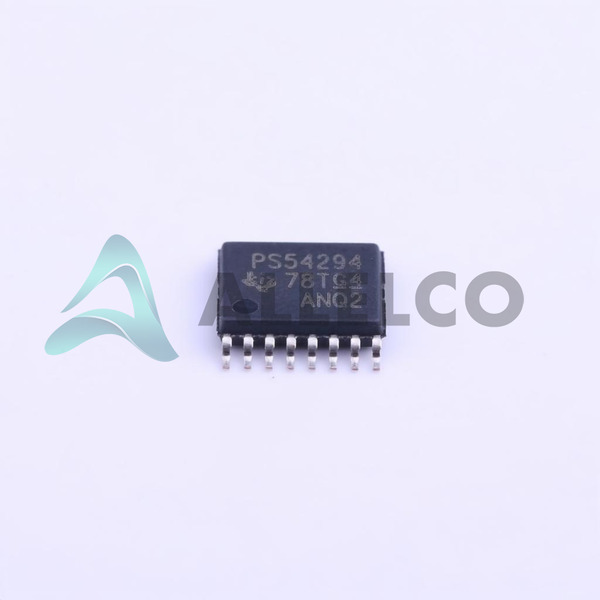

TPS54294PWPR

Manufacturer

Texas Instruments

Introduction

The TPS54294PWPR is a step-down, dual-output adjustable voltage regulator from Texas Instruments, designed for efficient power management in applications requiring multiple supply voltages.

Product Features and Performance

Features D-CAP2™ and Eco-Mode™ for efficient power conversion

Dual-output capability

Synchronous rectification technology

High frequency switching at 700kHz for reduced noise and improved efficiency

Supports a broad input voltage range from 4.5V to 18V

Product Advantages

Excellent thermal performance with a maximum operating temperature of 85°C

Compact 16-PowerTSSOP package suitable for surface mount

Enables design flexibility with adjustable output voltage range from 0.76V to 7V

Key Technical Parameters

Input Voltage: 4.5V (Min) to 18V (Max)

Output Voltage: 0.76V (Min) to 7V (Max)

Output Current: 2A

Switching Frequency: 700kHz

Quality and Safety Features

Designed to operate in harsh conditions with an operating temperature range from -40°C to 85°C

Compatibility

Compatible with a wide range of applications needing adjustable DC voltage

Application Areas

Ideal for distributed power architectures

Suitable for telecommunications and industrial systems, as well as general purpose power supply designs

Product Lifecycle

Currently in the active phase with no discontinuation announced and options for future replacements or upgrades available

Several Key Reasons to Choose This Product

Flexible input and output voltage ranges accommodate a variety of power supply setups

High-efficiency power conversion reduces energy costs and heat generation

Dual output configuration simplifies design and reduces component count for multi-voltage systems

The product's long lifecycle and active status ensure long-term availability and support
