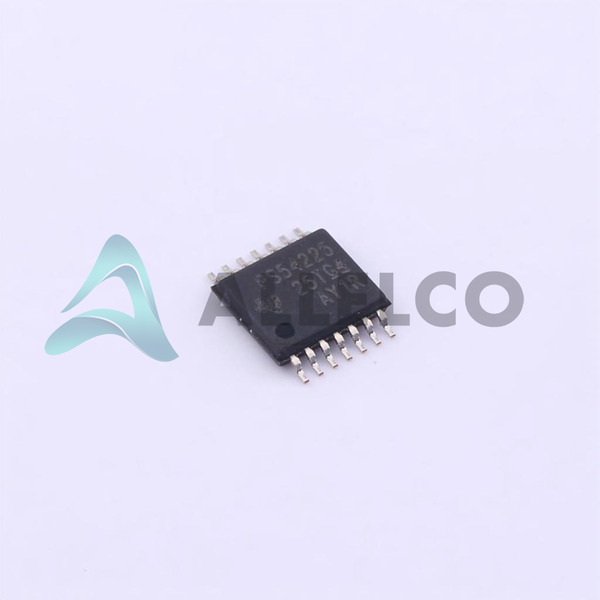

TPS54225PWP - Texas Instruments

Manufacturer Part Number

TPS54225PWP

Manufacturer

Texas Instruments

Introduction

The TPS54225PWP is a step-down (buck) regulator designed for power-efficient operation in various applications.

Product Features and Performance

Adjustable output voltage ranging from 0.76V to 5.5V

Input voltage range from 2V to 18V

Output current capability of up to 2A

High switching frequency of 700kHz

Incorporates synchronous rectification

Supports surface mount technology

Product Advantages

Efficient power conversion which enhances battery life

Compact TSSOP package suitable for space-constrained applications

Stable operation with D-CAP2™ control mode for fast transient response

Key Technical Parameters

Output Voltage: 0.76V - 5.5V adjustable

Input Voltage: 2V - 18V

Current - Output: 2A

Frequency - Switching: 700kHz

Operating Temperature: -40°C to 85°C

Quality and Safety Features

High thermal performance and reliability within specified operating temperatures

Built-in safety features complying with industry standards

Compatibility

Compatible with a wide range of input and output voltages for various applications

Surface Mount compatible with standard manufacturing processes

Application Areas

Suitable for powering ASICs, FPGAs, DSPs, and microprocessors

Useful in consumer electronics, networking, and telecommunication equipment

Product Lifecycle

Currently in Active status

Not nearing discontinuation, with ongoing manufacturer support and availability

Several Key Reasons to Choose This Product

Wide input voltage range helpful for varied power supply conditions

High-output current suitable for demanding applications

High switching frequency ensures compact solution with minimal external components

Robust thermal and operational stability under a wide range of conditions

Future-proof choice with active product status and no planned discontinuation
