HomeProductsIntegrated Circuits (ICs)PMIC - Voltage Regulators - DC DC Switching RegulatorsTPS53318DQPR

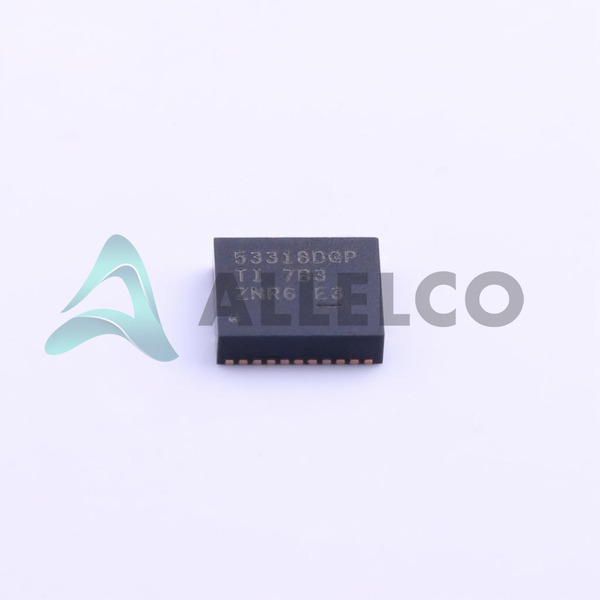

TPS53318DQPR Image
TPS53318DQPR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS53318DQPR - Texas Instruments

Manufacturer Part Number
TPS53318DQPR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS53318DQPR
ECAD Model
Parts Description
IC REG BUCK ADJUSTABLE 8A 22SON
Package
22-PowerLFDFN
Data sheet
TPS53318,19.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 16408

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS53318DQPR Tech Specifications
Texas Instruments - TPS53318DQPR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS53318DQPR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Output (Min/Fixed) 0.6V
Voltage - Output (Max) 5.5V
Voltage - Input (Min) 1.5V
Voltage - Input (Max) 22V
Topology Buck
Synchronous Rectifier Yes
Supplier Device Package 22-LSON-CLIP (6x5)
Series D-CAP™, Eco-Mode™
Package / Case 22-PowerLFDFN
Product Attribute Attribute Value
Package Tape & Reel (TR)
Output Type Adjustable
Output Configuration Positive
Operating Temperature -40°C ~ 85°C (TA)
Number of Outputs 1
Mounting Type Surface Mount
Function Step-Down
Frequency - Switching 250kHz ~ 1MHz
Current - Output 8A
Base Product Number TPS53318

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS53318DQPR

Manufacturer

Texas Instruments

Introduction

High-Efficiency Step-Down Converter

Product Features and Performance

D-CAP™ Mode for Fast Transient Response

Eco-Mode™ for Light Load Efficiency

Adjustable Output Voltage

Synchronous Rectifier for improved efficiency

Soft Start and Enable

Overvoltage, Undervoltage Lockout

Thermal Shutdown Protection

Power Good Indicator

Product Advantages

High Efficiency at Light Loads

Precision Enable Threshold for System Sequencing

Programmable Switching Frequency

Low Shutdown Iq (quiescent current)

Key Technical Parameters

Input Voltage Range: 1.5V to 22V

Adjustable Output Voltage Range: 0.6V to 5.5V

Output Current Capability: 8A

Switching Frequency: 250kHz to 1MHz

Number of Outputs: 1

Topology: Buck Converter

Quality and Safety Features

Protection Against Overcurrent and Overtemperature

Under Voltage Lockout (UVLO)

Thermal Shutdown

Compatibility

Compatible with a wide range of input voltages and output loads

Application Areas

Servers, Storage, Networking Equipment

High Density Power Systems

Multi-Phase Power Supplies

Telecommunication and RF Power Amplifiers

Product Lifecycle

Active Product

Not Nearing Discontinuation

Replacements and Upgrades Available

Several Key Reasons to Choose This Product

Versatile Input Voltage Range Suitable for Various Applications

Adaptable Switching Frequency for Performance Tuning

High Output Current for Demanding Loads

Integrated Synchronous Rectifier to Maximize Efficiency

Reduced External Component Count Due to Internal Switches

Proven Reliability with Texas Instruments Quality

Environmental Compliance with RoHS Standards

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS53318DQPR

Product Attribute TPS53318DQPR TPS53319DQPR TPS53321RGTR TPS53316RGTR
Part Number TPS53318DQPR TPS53319DQPR TPS53321RGTR TPS53316RGTR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Voltage - Input (Min) 1.5V 1.5V 2.9V 2.9V
Supplier Device Package 22-LSON-CLIP (6x5) 22-LSON-CLIP (6x5) 16-VQFN (3x3) 16-VQFN (3x3)
Synchronous Rectifier Yes Yes Yes Yes
Number of Outputs 1 1 1 1
Series D-CAP™, Eco-Mode™ D-CAP™, Eco-Mode™ SmoothPWM™, Eco-Mode™ SmoothPWM™, Eco-Mode™
Topology Buck Buck Buck Buck
Voltage - Output (Max) 5.5V 5.5V 5.04V 4.8V
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Output Configuration Positive Positive Positive Positive
Base Product Number TPS53318 TPS53319 TPS53321 TPS53316
Frequency - Switching 250kHz ~ 1MHz 250kHz ~ 1MHz 1.1MHz 725kHz, 1.1Mhz, 1.8MHz
Package / Case 22-PowerLFDFN 22-PowerLFDFN 16-VFQFN Exposed Pad 16-VFQFN Exposed Pad
Voltage - Output (Min/Fixed) 0.6V 0.6V 0.6V 0.6V
Function Step-Down Step-Down Step-Down Step-Down
Current - Output 8A 14A 5A 5A
Voltage - Input (Max) 22V 22V 6V 6V
Output Type Adjustable Adjustable Adjustable Adjustable
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount

TPS53318DQPR Datasheet PDF

Download TPS53318DQPR pdf datasheets and Texas Instruments documentation for TPS53318DQPR - Texas Instruments.

HTML Datasheet
TPS53318,19.pdf
