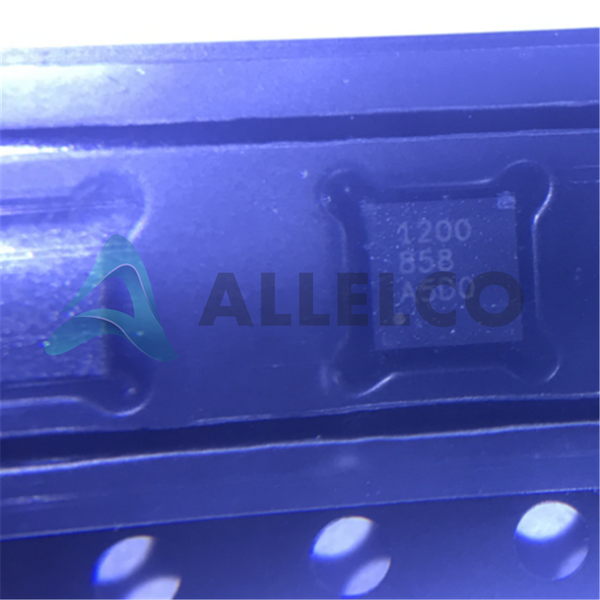

TPS51200DRCR - Texas Instruments

Manufacturer Part Number

TPS51200DRCR

Manufacturer

Texas Instruments

Introduction

Voltage regulator for DDR memory power management

Product Features and Performance

Regulates output to address VTT requirements

Provides sink and source capability

Supports high-speed memory interfaces

Low output impedance for transient response

Ensures stable operation over time and temperature

Built-in soft-start feature to minimize inrush current

Product Advantages

High integration suitable for space-constrained applications

High precision for reliable DDR memory operation

Thermal shutdown protection for increased longevity

Compatible with various DDR generations

Key Technical Parameters

Input Voltage Range: 2.38V to 3.5V

Output: Adjustable to DDR requirements

Number of Outputs: 1

Operating Temperature: -40°C to 85°C

Mounting Type: Surface Mount

Package / Case: 10-VFDFN Exposed Pad

Supplier Device Package: 10-VSON (3x3)

Quality and Safety Features

Overcurrent protection

Thermal shutdown

UVLO (Under Voltage Lock Out)

Compatibility

Supports DDR, DDR2, DDR3, Low Power DDR3, DDR4 memory

Compatible with various memory systems requiring VTT termination

Application Areas

Memory modules for computers

High-speed data processing units

Networking hardware

Telecommunication systems

Product Lifecycle

Active status product

Not indicated as nearing discontinuation

Availability of replacements or upgrades not explicitly mentioned

Several Key Reasons to Choose This Product

Designed and manufactured by Texas Instruments, a reliable leader in semiconductor markets

Optimized for high-speed memory interface applications

Enhanced thermal performance for better reliability

Industry-standard packaging for simplified design-in process

Provides key protections and features for advanced power management systems

Support for a broad range of DDR memory technologies ensures flexibility and longevity in design compatibility
