HomeProductsIntegrated Circuits (ICs)PMIC - SupervisorsTPS3840DL25DBVR

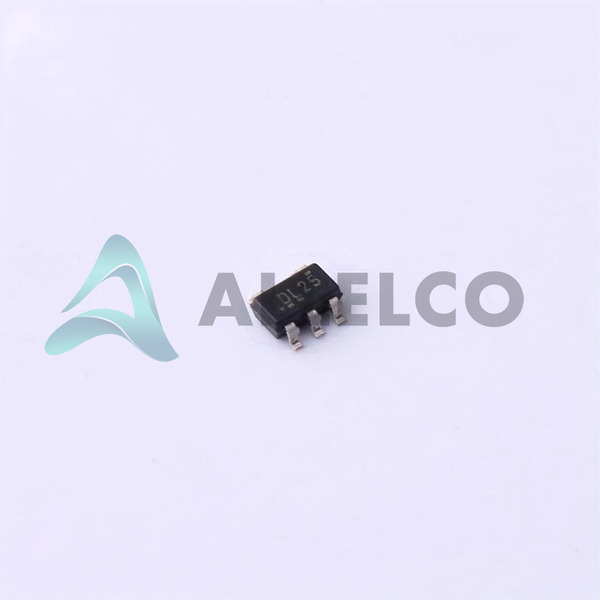

TPS3840DL25DBVR Image
Image may be representation.
See specifications for product details.

TPS3840DL25DBVR - Texas Instruments

Manufacturer Part Number
TPS3840DL25DBVR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS3840DL25DBVR
ECAD Model
Parts Description
IC SUPERVISOR 1 CHANNEL SOT23-5
Detailed Description
Package
SC-74A, SOT-753
Data sheet
TPS3840DL25DBVR.pdf
RoHs Status
ROHS3 Compliant
In stock: 106340

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

TPS3840DL25DBVR Tech Specifications
Texas Instruments - TPS3840DL25DBVR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS3840DL25DBVR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Threshold 2.5V
Type Simple Reset/Power-On Reset
Supplier Device Package SOT-23-5
Series -
Reset Timeout 619ms Typical
Reset Active Low
Product Attribute Attribute Value
Package / Case SC-74A, SOT-753
Package Tape & Reel (TR)
Output Open Drain or Open Collector
Operating Temperature -40°C ~ 125°C (TJ)
Number of Voltages Monitored 1
Mounting Type Surface Mount
Base Product Number TPS3840

Parts Introduction

Manufacturer Part Number

TPS3840DL25DBVR

Manufacturer

Texas Instruments

Introduction

The TPS3840DL25DBVR is a voltage supervisor device for power management applications.

Product Features and Performance

Simple Reset/Power-On Reset functionality

Monitors single voltage level

Open Drain or Open Collector output

Active Low reset signal

619ms Typical reset timeout duration

Supports operating temperatures from -40°C to 125°C

Product Advantages

Precision voltage monitoring for reliable operation

Extended temperature range serving diverse environments

Small footprint for space-sensitive applications

Robust design for long-term stability

Key Technical Parameters

Voltage - Threshold: 2.5V

Number of Voltages Monitored: 1

Reset Timeout: 619ms Typical

Operating Temperature Range: -40°C ~ 125°C

Quality and Safety Features

Built to Texas Instruments' exacting quality standards

Compatibility

Compatible with various microcontroller and processor systems requiring a 2.5V supervisory circuit

Surface mount compatible for PCB assembly

Application Areas

Consumer Electronics

Telecommunications

Industrial systems

Automotive

Product Lifecycle

Active product status

No listed discontinuation or obsolescence at the time of knowledge cutoff

Reasons to Choose This Product

Reliability in power management supervision

Texas Instruments' reputation for robust electronics components

Integration simplicity with SOT-23-5 package

Designed for energy-sensitive and critical systems with precision monitoring

Longevity and industry trust in performance and quality

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS3840DL25DBVR

Product Attribute TPS3840DL25DBVR TPS3839L30DBZR TPS3839L30DQNR TPS3840DL17DBVR
Part Number TPS3840DL25DBVR TPS3839L30DBZR TPS3839L30DQNR TPS3840DL17DBVR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Supplier Device Package SOT-23-5 SOT-23-3 4-X2SON (1x1) SOT-23-5
Reset Active Low Active Low Active Low Active Low
Base Product Number TPS3840 TPS3839 TPS3839 TPS3840
Series - - - -
Output Open Drain or Open Collector Push-Pull, Totem Pole Push-Pull, Totem Pole Open Drain or Open Collector
Voltage - Threshold 2.5V 2.63V 2.63V 1.7V
Type Simple Reset/Power-On Reset Simple Reset/Power-On Reset Simple Reset/Power-On Reset Simple Reset/Power-On Reset
Operating Temperature -40°C ~ 125°C (TJ) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 125°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Reset Timeout 619ms Typical 120ms Minimum 120ms Minimum 619ms Typical
Number of Voltages Monitored 1 1 1 1
Package / Case SC-74A, SOT-753 TO-236-3, SC-59, SOT-23-3 4-XDFN Exposed Pad SC-74A, SOT-753

TPS3840DL25DBVR Datasheet PDF

Download TPS3840DL25DBVR pdf datasheets and Texas Instruments documentation for TPS3840DL25DBVR - Texas Instruments.
