Manufacturer Part Number

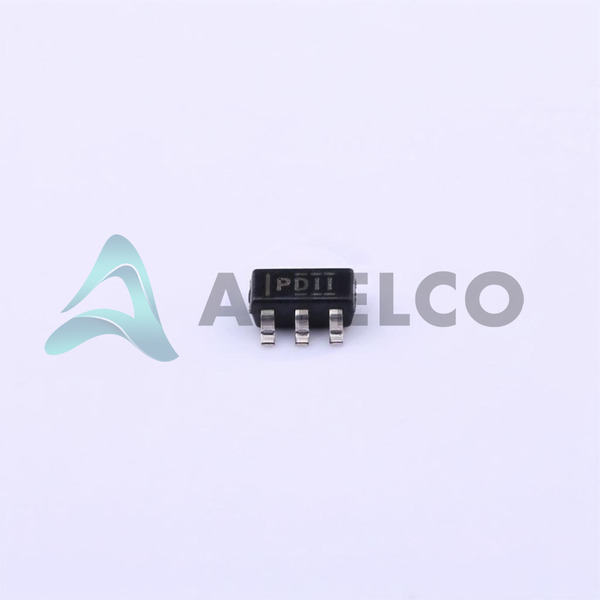

TPS3828-33DBVT
Manufacturer
Texas Instruments
Introduction
The TPS3828-33DBVT from Texas Instruments is a simple reset/power-on reset supervisor designed to monitor a single voltage level and initiate a system reset if the voltage falls below a predefined threshold.
Product Features and Performance
Monitors one voltage level
Threshold voltage set at 2.93V
Open Drain or Open Collector output
Active Low reset signal
Minimum reset timeout of 120ms
Operating temperature range from -40°C to 85°C
Surface Mount mounting type
Product Advantages
Precise voltage monitoring for system reliability
Low power consumption suitable for battery-operated devices
Compact form factor for space-constrained applications
Offers system reset functionality without complex programming
Key Technical Parameters
Voltage Threshold: 2.93V
Reset: Active Low
Reset Timeout: 120ms Minimum
Operating Temperature: -40°C ~ 85°C (TA)
Quality and Safety Features
Designed to meet stringent quality standards
Helps prevent system damage due to unexpected under-voltage conditions
Compatibility
Packaging compatible with Tape & Reel (TR) for automated assembly processes
SOT-23-5 package fits a wide range of PCB designs
Application Areas
Portable electronics
IoT devices
Microcontroller-based systems
Automotive applications
Product Lifecycle
Product Status: Last Time Buy, indicating nearing discontinuation
Availability of replacements or upgrades should be checked with the manufacturer
Several Key Reasons to Choose This Product
Reliable voltage monitoring from a reputable manufacturer
Enhances system stability and safety
Easy to integrate into existing designs with minimal external components
Supports automated mass production with Tape & Reel packaging
Suitable for a wide range of applications due to its operating temperature range and package type
