Manufacturer Part Number

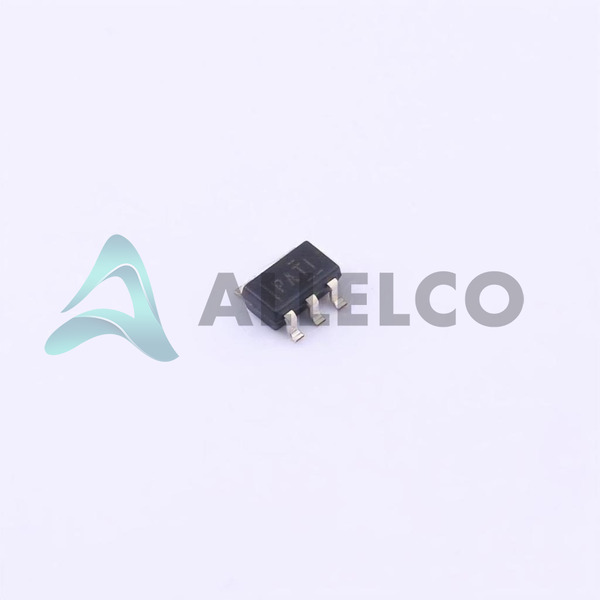

TPS3824-25DBVR
Manufacturer
Texas Instruments
Introduction
TPS3824-25DBVR is a voltage monitor designed for power management applications, ensuring optimal performance in system power supply monitoring.
Product Features and Performance
Monitors single voltage
Voltage threshold set at 2.25V
Provides both active high and active low reset signals
Outputs in push-pull, totem pole configuration
Minimum reset timeout of 120ms
Operates effectively in temperatures ranging from -40°C to 85°C
Product Advantages
Compact and reliable for critical system monitoring
Dual reset outputs for increased system safety
Quick response time improves system stability
Key Technical Parameters
Voltage Threshold: 2.25V
Output: Push-Pull, Totem Pole
Reset: Active High/Active Low
Reset Timeout: 120ms Minimum
Operating Temperature: -40°C ~ 85°C
Quality and Safety Features
Ensures stable operation within specified temperature range
Minimizes risk of false triggering with defined reset timeout
Compatibility
Surface mount technology suitable for compact PCB designs
Package / Case: SC-74A, SOT-753, tailored for easy integration in various designs
Application Areas
Critical power management in computing
Telecommunications
Industrial electronic systems
Product Lifecycle
Currently active product status
Has replacements and upgrades available, making it future-proof
Several Key Reasons to Choose This Product
High reliability and accuracy in voltage monitoring
Versatile for a variety of harsh environments
Easy to integrate with space-saving design
Ensures system stability and safety with dual reset signals
Supported by Texas Instruments' strong technical support and product longevity
